ADXL343BCCZ-RL

Part No ADXL343BCCZ-RL
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - Accelerometers
Description ACCEL 2-16G I2C/SPI 14LGA / Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 0.05Hz ~ 1.6kHz 14-LGA (3x5)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - Accelerometers
Mfr Analog Devices Inc.
Package Tape & Reel
Product Status Active
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g, 16g
Sensitivity (LSB/g) 256 (±2g) ~ 32 (±16g)
Bandwidth 0.05Hz ~ 1.6kHz
Output Type I2C, SPI
Voltage - Supply 2V ~ 3.6V
Features Adjustable Bandwidth
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 14-VFLGA
Supplier Device Package 14-LGA (3x5)
Base Product Number ADXL343
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 852880-ADXL343BCCZ-RL
Ultra Librarian 3D Model Ultra Librarian ADXL343BCCZ-RL CAD Model

Description

ADXL343BCCZ-RL: High-Performance Digital Accelerometer

The ADXL343BCCZ-RL is a versatile and robust digital accelerometer designed by Analog Devices Inc. This compact sensor is ideal for a wide range of applications, including mobile devices, gaming systems, industrial instrumentation, and personal navigation devices. It offers high resolution, measuring acceleration with a full-scale range of ±2g, ±4g, ±8g, or ±16g.

At the heart of the ADXL343BCCZ-RL is a micro-electromechanical system (MEMS) accelerometer, which ensures accurate and reliable readings. The device features a 13-bit, 3-axis digital output that can be accessed through a digital interface, which is I2C/SPI-compatible, making it easy to integrate with most microcontrollers and processors.

The ADXL343BCCZ-RL is designed with power efficiency in mind. It operates on a supply voltage ranging from 2.0V to 3.6V, allowing it to be used in battery-powered devices where power conservation is critical. Additionally, the accelerometer includes several power-saving features like an auto-sleep mode and a low power active mode, which help to extend battery life in portable applications.

Analog Devices Inc. has equipped the ADXL343BCCZ-RL with a variety of features to enhance its performance and ease of use. These include free-fall detection, tap/double tap recognition, and activity/inactivity monitoring. These built-in functions can be used to trigger events, alarms, or notifications without the need for constant data processing by the host processor, thus reducing system power consumption.

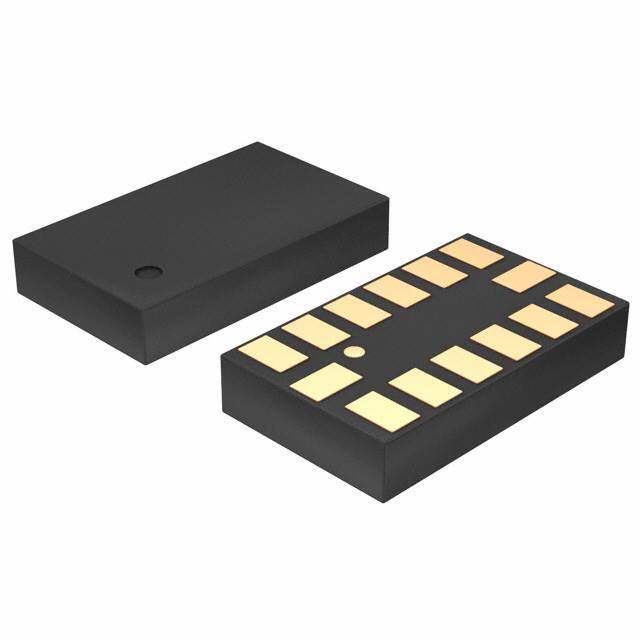

The device is packaged in a small, thin, 3mm x 5mm x 1mm, 14-lead, plastic lead frame chip scale package (LFCSP_LQ). This small form factor makes it an excellent choice for space-constrained applications. Furthermore, the ADXL343BCCZ-RL is RoHS compliant and lead-free, making it an environmentally friendly choice for manufacturers and designers looking to create sustainable products.

With its high precision, low power consumption, and compact design, the ADXL343BCCZ-RL from Analog Devices Inc. stands out as a top-tier solution for any project requiring reliable motion and orientation sensing.
