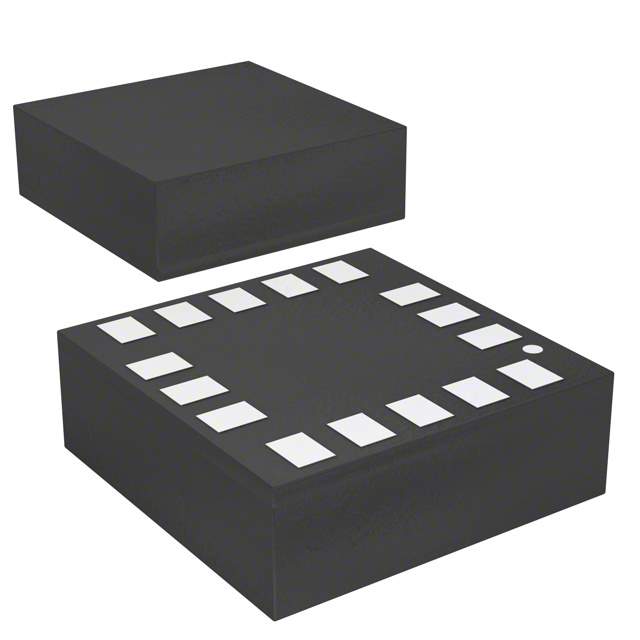

ADXL344ACCZ-RL7

Part No ADXL344ACCZ-RL7
Manufacturer Analog Devices Inc.
Catalog Accelerometers
Description ACCEL 2-16G I2C/SPI 16LGA / Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 0.05Hz ~ 1.6kHz 16-LGA (3x3)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Motion Sensors - Accelerometers
Mfr Analog Devices Inc.
Package Tape & Reel
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g, 16g
Sensitivity (LSB/g) 256 (±2g) ~ 32 (±16g)
Bandwidth 0.05Hz ~ 1.6kHz
Output Type I2C, SPI
Voltage - Supply 1.7V ~ 2.75V
Features Adjustable Bandwidth
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 16-VFLGA
Supplier Device Package 16-LGA (3x3)
Base Product Number ADXL344
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9031.80.8085
Other Names -2735-ADXL344ACCZ-RL7DKR,505-ADXL344ACCZ-RL7TR,505-ADXL344ACCZ-RL7DKR,ADXL344ACCZ-RL7TR,ADXL344ACCZ-RL7TR-ND,2266-ADXL344ACCZ-RL7,ADXL344ACCZ-RL7DKR-ND,ADXL344ACCZ-RL7CT-ND,ADXL344ACCZRL7,505-ADXL344ACCZ-RL7CT,ADXL344ACCZ-RL7DKR,-2735-ADXL344ACCZ-RL7CT,ADXL344ACCZ-RL7CT
Standard Package 1,500
Win Source Part Number 1043955-ADXL344ACCZ-RL7
Ultra Librarian 3D Model Ultra Librarian ADXL344ACCZ-RL7 CAD Model

Description

The ADXL344ACCZ-RL7 is a cutting-edge accelerometer module designed and manufactured by Analog Devices Inc., a leader in precision high-performance integrated circuits. This compact, low-power, 3-axis accelerometer has a wide range of applications including mobile device motion detection, gaming controllers, personal navigation devices, and health and fitness monitoring.

The ADXL344ACCZ-RL7 boasts high resolution (13-bit) measurement at up to ±16 g. The high resolution enables motion detection, such as tilt and fall detection, with high accuracy. The device can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.

One of the key features of this accelerometer is its user-selectable bandwidth, which can be set to suit the application via a serial interface (SPI/I2C). This flexibility allows for the reduction of noise and power consumption, as well as the tuning of the bandwidth for different use cases. Additionally, the device has built-in features like Activity/Inactivity Monitoring, Tap/Double Tap Detection, and Free-Fall Detection, making it highly versatile for various types of motion detection.

The ADXL344ACCZ-RL7 operates over a temperature range of -40°C to +85°C, ensuring reliable performance in diverse environments. It comes in a small, thin, ultra-low profile package (3 mm × 5 mm × 1 mm LFCSP), which is ideal for space-constrained devices. The device also features low power modes that reduce power consumption to extend battery life in portable applications.

In summary, the ADXL344ACCZ-RL7 from Analog Devices Inc. is a robust and versatile accelerometer that offers high precision in a wide range of applications. It is an excellent choice for designers who require a reliable sensor that combines advanced features with ease of integration into various systems.

Key Features:

  • High resolution (13-bit) up to ±16 g
  • User-selectable bandwidth via SPI/I2C
  • Activity/Inactivity Monitoring
  • Tap/Double Tap Detection
  • Free-Fall Detection
  • Wide temperature range: -40°C to +85°C
  • Small, thin, ultra-low profile package
  • Low power consumption modes
