ADXL322JCP-REEL7 - Low Power, ±2 g Dual Axis Accelerometer

The ADXL322JCP-REEL7 is a precision, low-power dual-axis accelerometer with signal conditioned voltage outputs, all on a single monolithic IC. Manufactured by Analog Devices Inc., this accelerometer is part of their renowned motion sensor product line, designed to measure acceleration with a full-scale range of ±2 g. It can measure both dynamic acceleration (e.g., vibration) and static acceleration (e.g., gravity).

Key Features:

• High Performance: The ADXL322JCP-REEL7 offers a high signal-to-noise ratio, making it an excellent choice for low-frequency vibration sensing.
• Low Power Consumption: Designed for battery-powered applications, it has a low power consumption of less than 1.8 mA.
• Wide Supply Voltage Range: It operates on a supply voltage range of 2.4 V to 5.25 V, which allows for flexibility in power supply management.
• Full-Scale Range: ±2 g sensing range provides a good balance for capturing both motion and vibration.
• Output Data: Analog output for each axis with a sensitivity of 420 mV/g at 5 V.

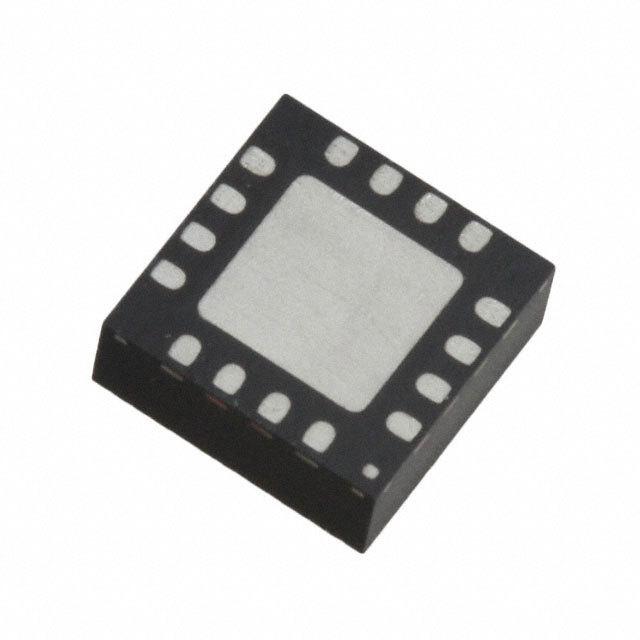

• Compact and Robust: Provided in a small, low-profile surface-mount package (LFCSP).

Applications:

The ADXL322JCP-REEL7 is ideal for a broad range of applications, including:

• Vehicle dynamic controls
• Electronic stability programs
• Antitheft systems
• Platform stabilization/tilt sensing
• Robotics and gaming systems
• Personal navigation devices
• Medical instrumentation

Quality and Reliability:

Analog Devices Inc. is known for its commitment to high-quality products, and the ADXL322JCP-REEL7 is no exception. It is available in a tape and reel format, ensuring safe and efficient handling for high-volume manufacturing processes. With its robust design and proven reliability, this accelerometer is an excellent choice for engineers and designers looking to incorporate precise motion sensing into their applications.

For more detailed information, datasheets, and technical specifications, visit the Analog Devices Inc. website or contact their support team.
