Product Overview: ADM223ARS from Analog Devices Inc.

The ADM223ARS is a high-performance, precision voltage level translator and RS-232 driver/receiver from the renowned semiconductor manufacturer, Analog Devices Inc. This device is designed to provide reliable communication in applications requiring the conversion of logic level signals to RS-232 compatible voltage levels, and vice versa. The ADM223ARS is particularly well-suited for use in telecommunications, industrial control systems, and data acquisition equipment, where robust and precise data transmission is critical.

Key Features

• Integrated Charge Pump Circuitry: The ADM223ARS includes an onboard charge pump that generates the necessary RS-232 voltage levels from a single +5V power supply. This feature eliminates the need for dual power supplies, simplifying design and reducing component count.
• High Data Rate: Capable of supporting data rates up to 120 kbps, the ADM223ARS is suitable for high-speed data communication, ensuring efficient and rapid data transfer across RS-232 interfaces.
• Low Power Consumption: The device features a low-power shutdown mode that reduces power consumption to just 1 µW, making it ideal for battery-powered and power-sensitive applications.
• ESD Protection: With built-in electrostatic discharge (ESD) protection up to ±15 kV, the ADM223ARS provides robust protection against electrical transients, enhancing the reliability and longevity of the equipment in which it is used.
• Multiple Drivers and Receivers: This IC includes two drivers and two receivers, offering flexibility in interfacing with various types of RS-232 communication ports.

Applications

• Portable Computing Devices
• Networking Equipment
• Peripheral Interfaces
• Data Communication Systems
• Industrial Control Interfaces

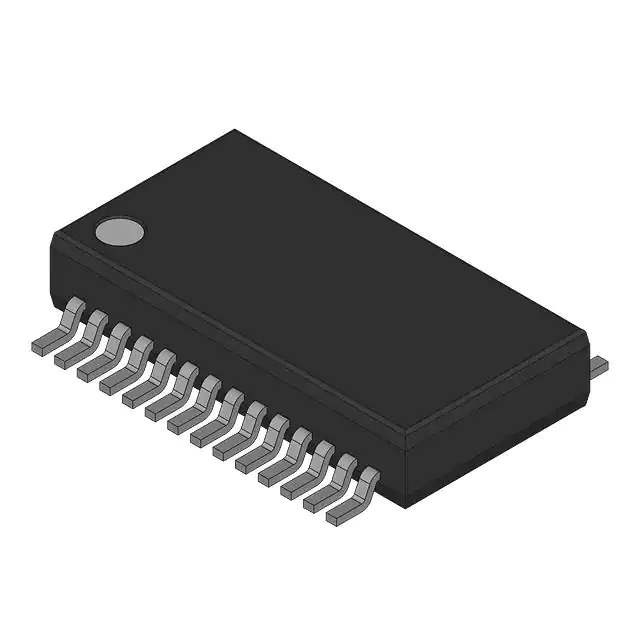

The ADM223ARS comes in a compact, surface-mount package, making it an excellent choice for space-constrained applications. Its high integration level allows designers to minimize PCB space and reduce overall system costs. Analog Devices Inc. has a long-standing reputation for quality and reliability, and the ADM223ARS is no exception. It is a robust and versatile solution for any designer looking to implement RS-232 communication with the assurance of performance and dependability.
