The NXP TJA1059TKJ is a high-speed CAN (Controller Area Network) transceiver designed to provide a reliable interface between the CAN protocol controller and the physical two-wire CAN bus. This robust transceiver is ideal for automotive applications and other environments where high-speed data communication is essential. With its advanced features and compact size, the TJA1059TKJ ensures efficient data transmission, improved error handling, and reduced electromagnetic emissions.

Key Features

• High-Speed CAN Interface: Supports ISO 11898-2 and ISO 11898-5 standards for data rates up to 1 Mbit/s, ensuring compatibility with existing CAN systems.
• Low Power Mode: An integrated standby mode with remote wake-up capability helps to reduce power consumption when the network is idle.
• Bus Failure Management: Features such as automatic thermal shutdown and bus fault detection enhance system reliability and safety.
• Robust Design: The device is designed to withstand the harsh conditions of automotive environments, including protection against transients, Electrostatic Discharge (ESD), and voltage spikes.

Applications

The TJA1059TKJ is suitable for a wide range of applications within the automotive sector, including:

• Engine Control Units (ECUs)
• Anti-lock Braking Systems (ABS)
• Infotainment Systems
• Advanced Driver Assistance Systems (ADAS)
• Body Control Modules (BCM)

Technical Specifications

• Supply Voltage: 4.5V to 5.5V
• Operating Temperature: -40°C to +150°C

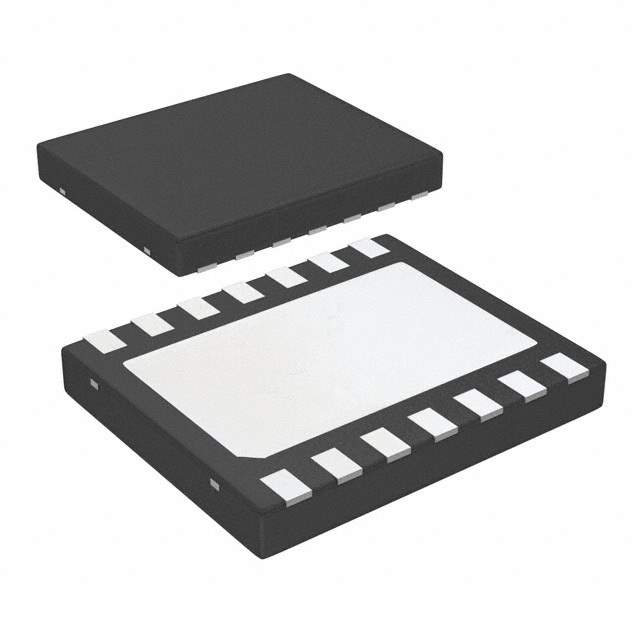

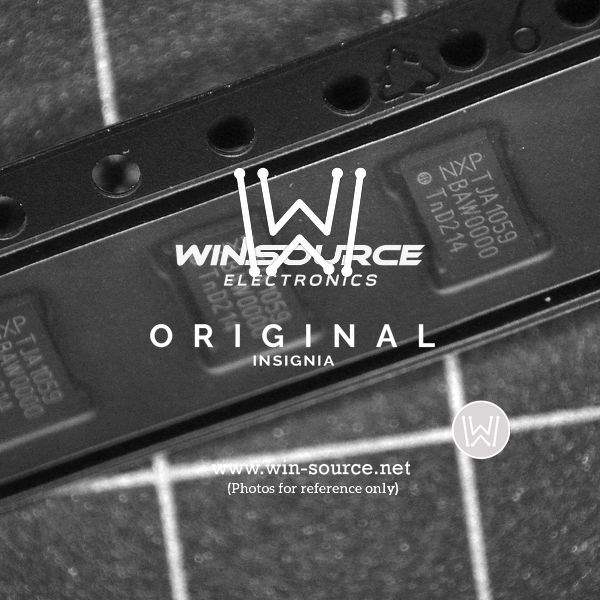

• Package: HVSON14 (Small Outline No Leads with Heat Sink)

With its combination of high-speed operation, low-power consumption, and robust protection features, the NXP TJA1059TKJ is an excellent choice for developers looking to create reliable and efficient CAN-based systems.
