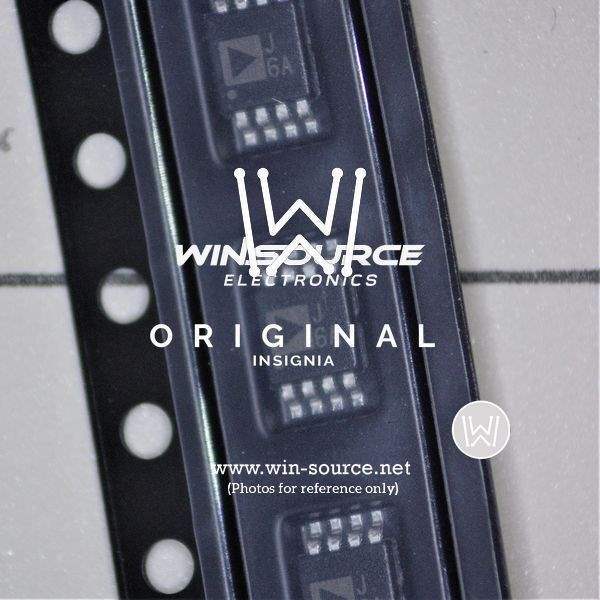

The AD8310ARMZ-REEL from Analog Devices Inc. is a complete, DC to 440 MHz demodulating logarithmic amplifier with a very fast voltage-mode output, capable of driving up to 25 mA into a grounded load in linear operation. This remarkable component is designed to provide a versatile and precise measurement of signal power in a wide range of applications, from cellular base stations to radar systems and general RF instrumentation.

Key Features:

• Frequency Range: Operates over a wide frequency range from DC to 440 MHz, making it suitable for various RF and IF applications.
• High Accuracy: Offers a dynamic range of 95 dB with an excellent logarithmic accuracy of ±1 dB over a 60 dB range and ±3 dB over an 80 dB range.
• Fast Response: Features a very fast response time with a 15 ns propagation delay and a 45 ns rise time, ensuring quick and reliable signal processing.
• Low Power Consumption: With a supply current of only 8.5 mA at 5 V, the device is optimized for low-power applications.
• Compact Package: Comes in a compact 8-lead MSOP (Mini Small Outline Package), ideal for space-constrained designs.
• Temperature Range: Operates over an industrial temperature range of -40°C to +85°C, suitable for harsh environments.
• Output Type: Provides a voltage output that directly drives a 50 Ω cable.

Applications:

• Cellular base stations
• Radar and satellite systems
• Signal intelligence
• Wireless infrastructure
• RF/IF PA setpoint control and level monitoring
• Logarithmic amplification for analog-to-digital conversion

The AD8310ARMZ-REEL logarithmic amplifier is an excellent choice for designers who need a high-performance log amp with a broad frequency range, high accuracy, and fast response time. Analog Devices Inc.'s commitment to quality ensures that this product meets the stringent requirements of RF/IF signal processing applications, delivering both reliability and performance.
