AD8307ARZ-RL7 - Low Power, DC-500 MHz, 92 dB Logarithmic Amplifier

The AD8307ARZ-RL7 is a highly integrated logarithmic amplifier from Analog Devices Inc., designed to accurately convert signal power in the frequency range of DC to 500 MHz to a corresponding voltage. It features an outstanding dynamic range of 92 dB, which allows it to measure signals from the minuscule level of -75 dBm up to +17 dBm without requiring external signal conditioning.

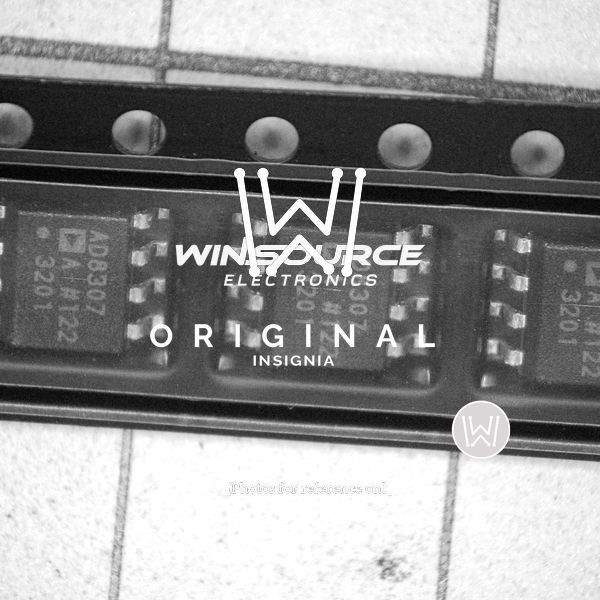

This precision logarithmic amplifier is housed in a compact SOIC package, making it an ideal choice for space-constrained applications. The AD8307ARZ-RL7 operates on a single 2.7 V to 5.5 V supply, drawing a low current, which is crucial for power-sensitive designs. This makes it especially suitable for battery-operated equipment, portable devices, and other applications where power efficiency is a critical factor.

With its high level of integration, the AD8307ARZ-RL7 includes a cascade of amplifier-limiter cells, each of which has a precisely defined small-signal gain and limiting threshold. The cell outputs are successively compressed, summed, and detected to provide a logarithmic response. Additionally, the device offers excellent conformance to the ideal logarithmic linearity, which is essential for accurate and consistent measurements.

The AD8307ARZ-RL7 also features a fast response time, capable of handling pulse inputs with widths as narrow as 8 ns or as wide as CW, and has a corresponding log conformance error of typically less than ±0.2 dB. This makes it an excellent choice for applications such as RSSI (Received Signal Strength Indicator) in communication systems, radar and sonar signal processing, and for use in a variety of test and measurement instruments.

Furthermore, the device provides a stable scaling temperature coefficient of 0.005%/°C, ensuring reliable performance over the full operating temperature range. The logarithmic amplifier's versatile nature also allows for use in logarithmic converters, amplifiers, or controllers in a wide array of applications.

With its combination of low power consumption, broad frequency range, and high dynamic range, the AD8307ARZ-RL7 from Analog Devices Inc. is a robust solution for designers who require precise logarithmic amplification in their electronic systems.
