AD594ADZ Thermocouple Amplifier by Analog Devices Inc.

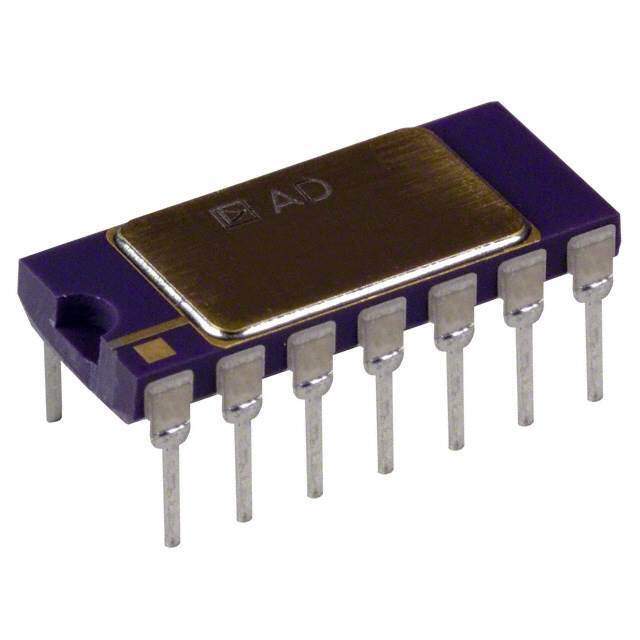

The AD594ADZ is a precision instrumentation amplifier specifically designed by Analog Devices Inc. to amplify the small voltage differences generated by thermocouples, particularly type J thermocouples. This integrated circuit (IC) simplifies temperature measurement and control systems by directly converting a thermocouple signal into a proportional temperature output.

The AD594ADZ is not just an amplifier; it includes additional features that make it a comprehensive solution for thermocouple-based applications. It incorporates cold junction compensation, which is essential for maintaining accuracy over a wide temperature range. This feature compensates for the temperature variations at the thermocouple reference junction, providing a stable output regardless of the ambient temperature.

Another key feature of the AD594ADZ is its high level of integration. It includes a built-in ice point reference, which eliminates the need for additional components and calibration in many applications. This results in a simplified design and reduced system cost. The device also offers a high impedance differential input, which is critical for measuring the small signals from thermocouples without introducing significant loading or signal distortion.

The AD594ADZ operates on a single supply voltage ranging from 5V to 30V, making it versatile for various system designs. Its linear temperature scaling of 10mV/°C and the ability to operate over a temperature range of -55°C to +125°C ensure that it can be used in a broad spectrum of temperature sensing and control applications.

For ease of use, the AD594ADZ comes in a 14-pin CDIP (Ceramic Dual In-line Package) or a 14-lead SOIC (Small Outline Integrated Circuit) package. It is ideal for industrial process control, HVAC systems, temperature monitoring systems, and any application where reliable and accurate temperature measurement is critical.

The robust design and high level of integration make the AD594ADZ from Analog Devices Inc. a go-to choice for engineers and designers looking for a reliable, easy-to-use thermocouple amplifier with built-in cold junction compensation.
