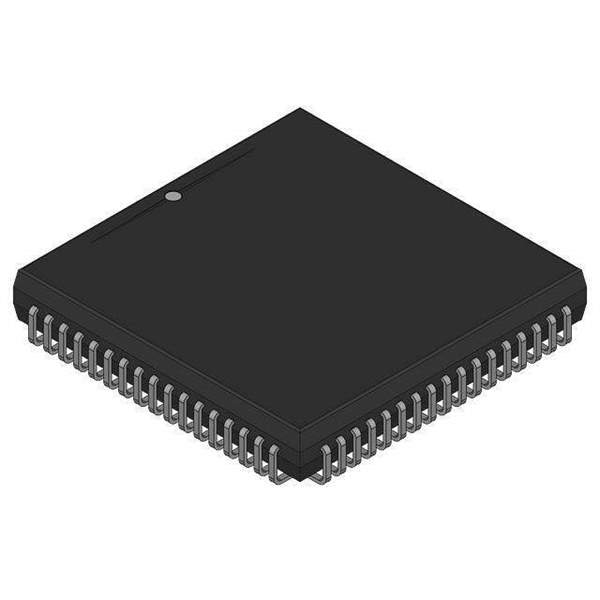

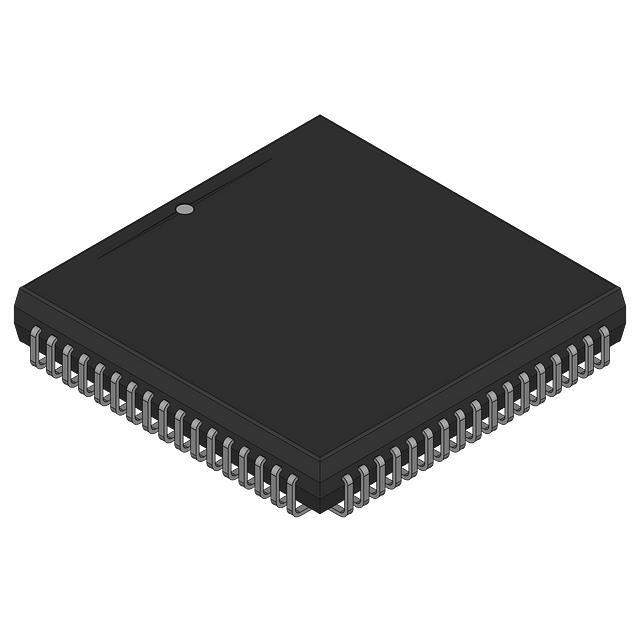

The SAB80C515A-N18 is a microcontroller manufactured by Infineon Technologies (formerly Siemens). It belongs to the 8051 family of microcontrollers, renowned for their robust architecture and widespread use in embedded systems. This particular variant offers enhanced features compared to the standard 8051, making it suitable for more demanding control applications.

Applications

• Industrial Automation
• Motor Control
• Robotics
• Automotive Electronics
• Process Control Systems
• Instrumentation

Features

• 8-bit CPU based on the 8051 architecture
• Up to 32 KB of on-chip ROM/EPROM
• 256 bytes of on-chip RAM
• Four 8-bit I/O ports
• Three 16-bit Timer/Counters
• Full-duplex UART for serial communication
• 8 Interrupt sources with 2 priority levels
• Watchdog Timer
• Extended address range (up to 64 KB) for program and data memory
• PWM unit

Benefits

• Enhanced performance compared to standard 8051 microcontrollers
• Integrated peripherals reduce external component count and cost
• Large memory capacity enables complex applications
• Flexible timer/counter options for precise timing control
• Robust interrupt handling for real-time responsiveness
• Reliable operation with watchdog timer
• Cost-effective solution for a wide range of embedded applications

Additional Details

The SAB80C515A-N18 offers an extended address range, allowing for larger program and data memory compared to the standard 8051. This enables the implementation of more complex algorithms and data structures. The integrated PWM unit simplifies the generation of pulse-width modulated signals, which are commonly used for motor control and dimming applications. The enhanced interrupt system provides more flexible interrupt handling, allowing for faster response to external events. The watchdog timer ensures reliable operation by automatically resetting the microcontroller if it encounters an error condition. The device is available in various package options, including DIP and surface-mount packages. Infineon provides comprehensive development tools and documentation to support the SAB80C515A-N18, including assemblers, compilers, and debuggers. This makes it easier for developers to create and debug their applications. Overall, the SAB80C515A-N18 is a versatile and cost-effective microcontroller that offers a good balance of performance, features, and ease of use.
