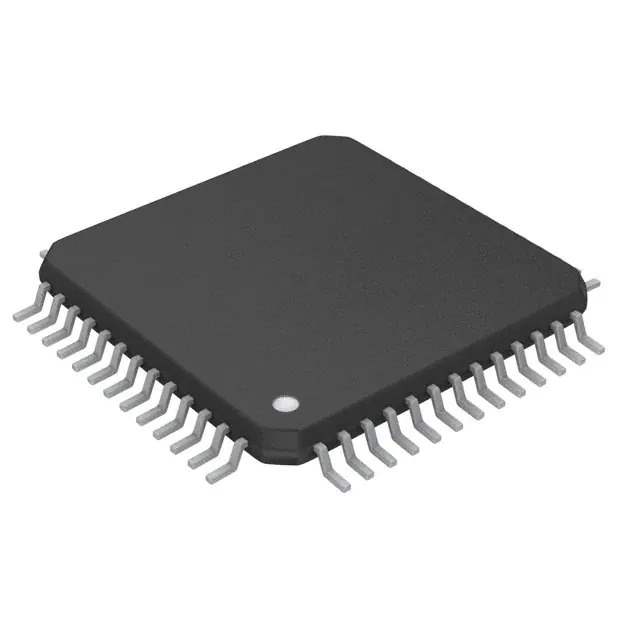

The AD1838AAS is a high-performance, single-chip audio codec from Analog Devices Inc. that provides an ideal solution for a variety of audio applications. This codec features 24-bit stereo audio ADCs (Analog-to-Digital Converters) and DACs (Digital-to-Analog Converters) that deliver a pristine audio signal with a dynamic range of 105 dB, making it suitable for professional audio recording, high-fidelity home theatre systems, and digital mixing consoles.

Key Features

• High-Resolution Audio: With its 24-bit conversion, the AD1838AAS ensures detailed and accurate sound reproduction, capturing the nuances of the audio source.
• Multiple Channels: The device supports up to 8 channels of DAC output and 4 channels of ADC input, allowing for versatile multi-channel audio configurations.
• Low Distortion: The codec boasts a Total Harmonic Distortion plus Noise (THD+N) of -90 dB, ensuring the audio output is clear and true to the original source.
• Sample Rates: The AD1838AAS supports a wide range of sample rates from 32 kHz to 192 kHz, accommodating various high-definition audio formats.
• Flexible Interface: It features a serial data port that allows for easy interfacing with digital signal processors (DSPs) and microcontrollers.

Applications

The versatility of the AD1838AAS makes it a top choice for a broad array of applications. It is particularly well-suited for:

• Professional audio recording equipment
• High-end consumer audio systems
• Multimedia and home theatre systems
• Digital audio effects processors
• Mixing consoles and digital audio workstations

Technical Specifications

For detailed technical documentation, application notes, and support resources, visit the Analog Devices Inc. website.
