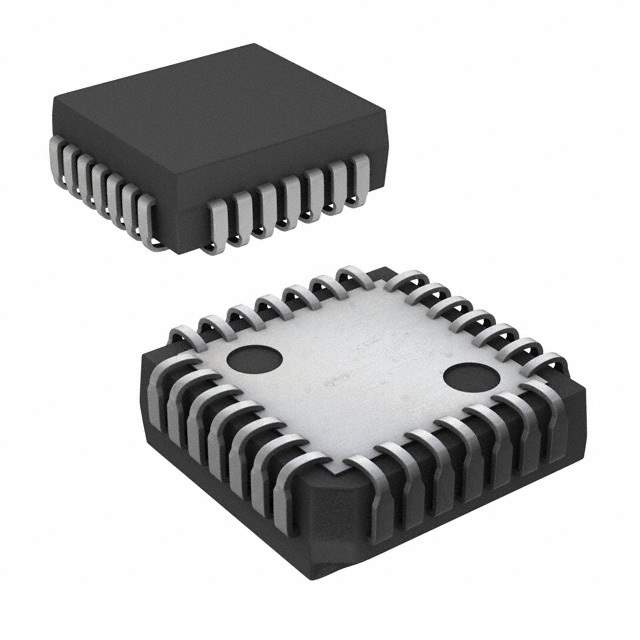

The TP3070V-XG from Texas Instruments is a highly integrated device designed to fulfill the needs of complex telecommunications systems. This advanced PCM (Pulse Code Modulation) Codec-Filter combines both analog-to-digital and digital-to-analog conversion functionalities in a single chip, making it an ideal solution for applications requiring efficient signal processing in digital communication systems.

Key Features

• High Integration: The TP3070V-XG integrates transmit and receive filters as well as a codec, minimizing the need for external components and simplifying design.
• Digital Filtering: It incorporates on-chip digital filters which provide the necessary signal conditioning for voiceband data transmission.
• Low Power Consumption: Designed to be power-efficient, it is suitable for portable and low-power applications.
• Programmable Gain: The device offers programmable gain settings, allowing for flexible adjustments to match system requirements.
• Single 5V Power Supply: The TP3070V-XG operates on a single 5V power supply, simplifying power management within the system.
• Extended Temperature Range: It is designed to operate over an extended temperature range, making it suitable for industrial environments.

Applications

The TP3070V-XG is widely used in a variety of telecommunication applications, including:

• Digital telephones
• Modems for data transmission
• Wireless communication systems
• Signal processing equipment

Technical Specifications

With its robust feature set and Texas Instruments' commitment to quality, the TP3070V-XG stands out as a reliable choice for designers looking to implement PCM codec-filters in their communication systems.
