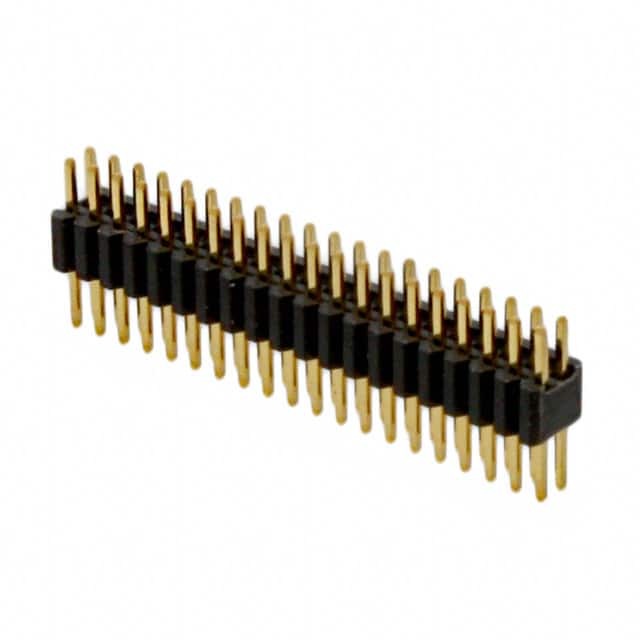

Same model may have multiple batches, images only for reference.
20021111-00040T4LF
Same model may have multiple batches, images only for reference.

20021111-00040T4LF

Part No 20021111-00040T4LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER VERT 40POS 1.27MM / Connector Header Through Hole 40 position 0.050" (1.27mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Amphenol
Series Minitek127® 1.27mm
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Contact Length - Post 0.091" (2.30mm)
Overall Contact Length 0.309" (7.86mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 125VAC
Contact Finish Thickness - Post 50.0µin (1.27µm)
Base Product Number 20021111
Standard Package 23 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848745-20021111-00040T4LF
Ultra Librarian 3D Model Ultra Librarian 20021111-00040T4LF CAD Model

Description

The 848745-20021111-00040T4LF is a male pin header connector from Amphenol. 848745-20021111-00040T4LF is manufactured by Amphenol ICC.

  • Connector Type: Header, Male Pin
  • Number of Positions: 40
  • Pitch: 0.050" (1.27mm)
  • Number of Rows: 2
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Voltage Rating: 125VAC
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Insulation Color: Black
  • Operating Temperature: -55°C ~ 125°C
  • Packaging: Tube
  • Series: Minitek127® 1.27mm
  • Standard Package: 23 pcs
  • Contact Shape: Square
  • Product Status: Active
