Same model may have multiple batches, images only for reference.

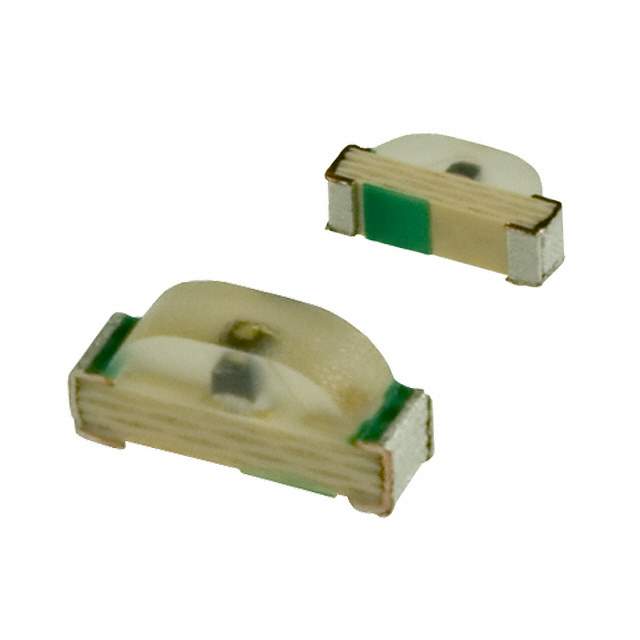

FA1113F-TR Real Image
Same model may have multiple batches, images only for reference.

FA1113F-TR

Part No FA1113F-TR
Manufacturer Stanley Electric Co
Catalog LED Indication - Discrete
Description LED ORANGE DIFF 0805 R/A SMD / LED Uni-Color Orange 609nm 2-Pin SMD T/R
Datasheet
FA1113F-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Stanley Electric Co
Series 1113F
Packaging Reel package
Part Status Obsolete(EOL)
Color Orange
Lens Color White
Lens Transparency Diffused
Millicandela Rating 65mcd
Lens Style/Size Rectangle with Domed Top, 1.70mm x 0.60mm
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 20mA
Viewing Angle 134°, 150°
Mounting Surface Mount, Right Angle
Wavelength - Dominant 605nm
Wavelength - Peak 609nm
Package 0805
Dimension 2.10mm L x 1.00mm W
Height (Maximum) 0.60mm
Win Source Part Number 774401-FA1113F-TR
Popularity Medium
Supply and Demand Status Limited
Family Name 1113F
Introduction Date March 30, 2001
ECCN EAR99
Country of Origin Thailand
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian FA1113F-TR CAD Model

Description

The Stanley Electric Co 1113F Optoelectronic component is an excellent choice for a wide range of electronic applications.

  • Millicandela: 65mcd
  • Lens: white diffused, rectangular, domed top
  • Dimension: 1.70mm x 0.60mm
  • Viewing angle: 134° and 150°
  • Voltage-forward: 1.9V
  • Wavelength-dominant: 605nm
  • Packaging: reel
  • Mounting: surface mount
  • Maximum height: 0.60mm
  • Dimension: 2.10mm L x 1.00mm W
  • Supply and demand: limited
  • Status: obsolete (EOL)
