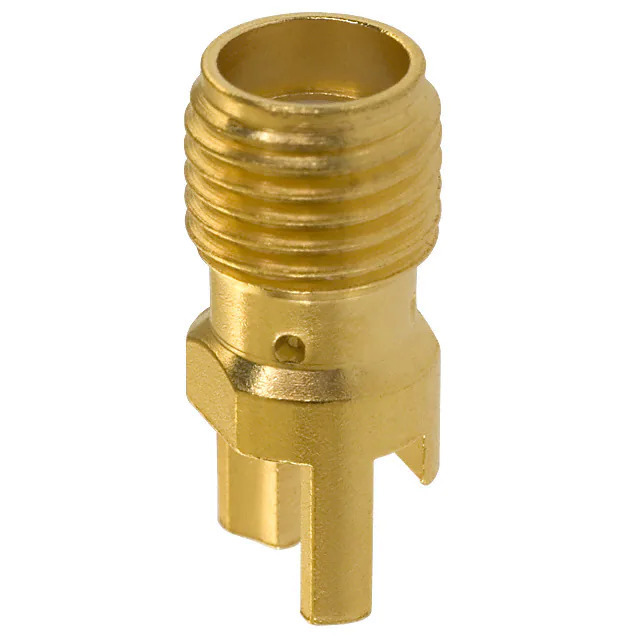

142-0761-891 Cinch Connectivity Solutions
Same model may have multiple batches, images only for reference.

142-0761-891

Part No 142-0761-891
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA JACK STR 50OHM EDGE MNT / SMA Connector Jack, Female Socket 50Ohm Board Edge, End Launch Solder
Datasheet
142-0761-891 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Cinch Connectivity Solutions Johnson
Series -
Package Bulk
Product Status Active
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Board Edge, End Launch
Mounting Feature -
Cable Group -
Fastening Type Threaded
Frequency - Max 26.5 GHz
Number of Ports 1
Features -
Housing Color Gold
Ingress Protection -
Center Contact Material Beryllium Copper
Includes -
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 170 V
Mating Cycles 500
Insertion Loss -
Base Product Number 142-0761
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1354842-142-0761-891
Ultra Librarian 3D Model Ultra Librarian 142-0761-891 CAD Model

Description

The Cinch Connectivity Solutions Johnson 142-0761-891 is a coaxial connector assembly designed for RF applications.

  • Package: Bulk
  • Fastening Type: Threaded
  • Voltage Rating: 170V
  • Temperature Range: -65°C to 165°C
  • Frequency Range: Up to 26.5 GHz
  • Impedance: 50Ohm
  • Base Product Number: 142-0761
  • Connector Style: SMA
  • Manufacturer: Cinch Connectivity Solutions Johnson
