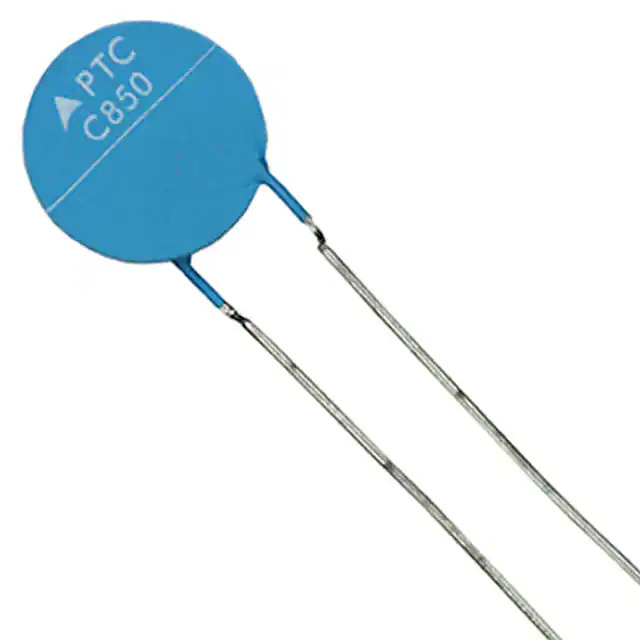

B59850C0080A070 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B59850C0080A070

Part No B59850C0080A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 265V 110MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr EPCOS - TDK Electronics
Series -
Package Bulk
Product Status Active
Type Ceramic
Voltage - Max 265V
Current - Hold (Ih) (Max) 110 mA
Current - Trip (It) 230 mA
Current - Max 2.2 A
Resistance - 25°C (Typ) 10 Ohms
Temperature Range - Operating 0°C ~ 60°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.532" Dia x 0.197" T (13.50mm x 5.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Approval Agency UR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1375677-B59850C0080A070
Ultra Librarian 3D Model Ultra Librarian B59850C0080A070 CAD Model

Description

The B59850C0080A070 is a PTC resettable fuse manufactured by EPCOS - TDK Electronics.

  • Type: Ceramic
  • Application: Circuit Protection
  • Current Rating: 2.2 A
  • Voltage Rating: 265V
  • Resistance (25°C): 10 Ohms
  • Temperature Range: 0°C to 60°C
  • Mounting Type: Through Hole
  • Package: Radial, Disc
  • Lead Spacing: 0.197" (5.00mm)
  • Size: 0.532" Dia x 0.197" T (13.50mm x 5.00mm)
  • Approval: UR
  • Applications: Automotive, DC Link, DC Filtering, High Pulse, DV/DT, Snubber Circuits
