Same model may have multiple batches, images only for reference.

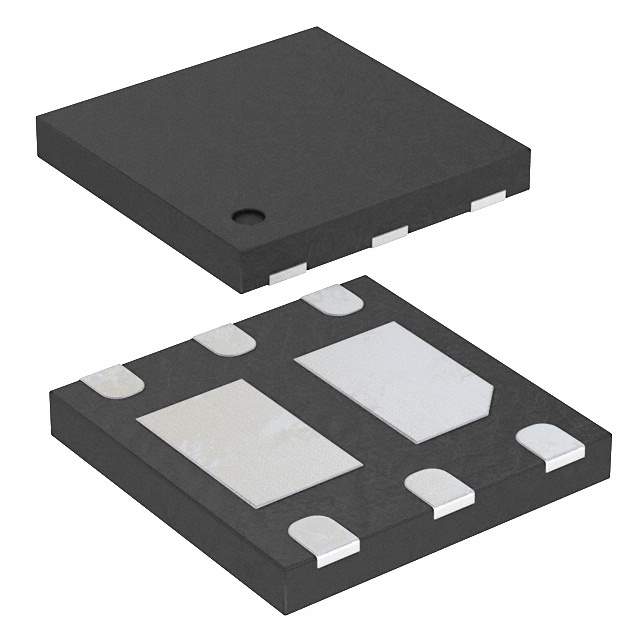

AON2810 Real Image
Same model may have multiple batches, images only for reference.

AON2810

Part No AON2810
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description DFN 2X2 PACKAGE MARKING DESCRIPTION
Datasheet
AON2810 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 2A
Rds On (Maximum) @ Id, Vgs 44 mOhm @ 2A, 10V
Vgs(th) (Maximum) @ Id 1.4V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 10nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 235pF @ 15V
Power - Max 2.5W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 6-WDFN Exposed Pad
Manufacturer Package 6-DFN (2x2)
Win Source Part Number 1144971-AON2810
Manufacturer Homepage www.aosmd.com
Popularity Medium
Supply and Demand Status Limited
Family Name AON2810
Introduction Date August 26, 2013
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian AON2810 CAD Model

Description

The AON2810 is a 2 N-channel (dual) FET with logic level gate feature from Alpha & Omega Semiconductor Inc.

  • Continuous Drain Current: 2A @ 25°C
  • Maximum Power: 2.5W
  • Category: suitable for discrete semiconductor products
  • Mounting Style: SMD
  • Drain-Source Voltage: 30V
  • Gate-Source Threshold Voltage: 1.4V @ 250μA
  • Input Capacitance: 235pF @ 15V
  • Maximum Rds On: 44 mOhm @ 2A, 10V
  • Package: 6-WDFN exposed pad
  • Compliance: halogen-free compliant
  • Supply and Demand Status: limited
  • Manufacturer: Alpha & Omega Semiconductor Inc.
