ACS711EEXLT-15AB-T

Part No ACS711EEXLT-15AB-T
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description SENSOR CURRENT HALL 15.5A AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Allegro MicroSystems, LLC
Package Tape & Reel
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 15.5A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 90mV/A
Frequency DC ~ 100kHz
Linearity ±1%
Accuracy ±5%
Voltage - Supply 3V ~ 5.5V
Response Time 4.6µs
Current - Supply (Max) 5.5mA
Temperature Range - Operating -40°C ~ 85°C
Polarization Bidirectional
Mounting Type Surface Mount

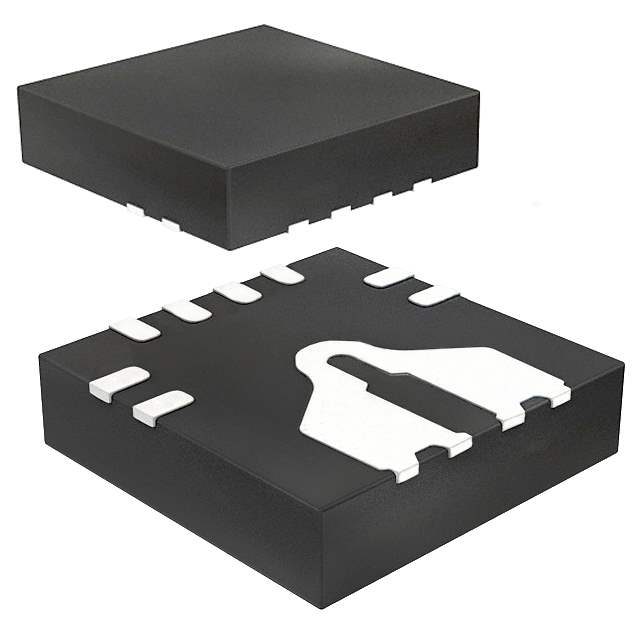

Package / Case 12-PowerWFQFN
Supplier Device Package 12-QFN (3x3)
Standard Package 1,500 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 848922-ACS711EEXLT-15AB-T
Ultra Librarian 3D Model Ultra Librarian ACS711EEXLT-15AB-T CAD Model

Description

The ACS711EEXLT-15AB-T is a current sensor designed for measuring AC and DC currents up to 15.5A from Allegro MicroSystems, LLC.

  • Technology: Hall Effect
  • Configuration: Open-Loop
  • Output: Ratiometric Voltage
  • Sensitivity: 90mV/A
  • Accuracy: ±5%
  • Response Time: 4.6µs
  • Supply Voltage: 3V to 5.5V
  • Maximum Current Consumption: 5.5mA
  • Package: 12-QFN
  • Mounting: Surface Mount
  • Product Status: Obsolete
