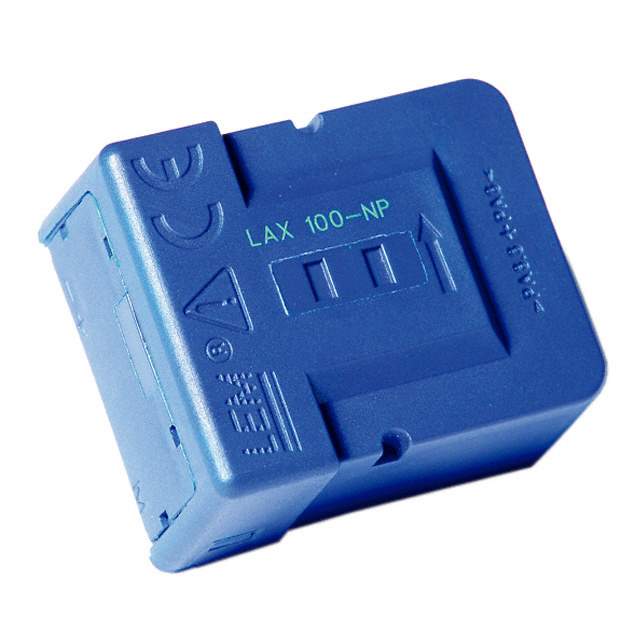

The LAX 100-NP is a closed-loop current transducer manufactured by LEM. It is designed to measure DC, AC, and pulsed currents with high accuracy and galvanic isolation. It's commonly used in industrial applications, power electronics, and energy management systems where precise current monitoring is essential.

Applications

• Variable Speed Drives
• Welding equipment
• UPS (Uninterruptible Power Supplies)
• SMPS (Switched-Mode Power Supplies)
• Battery chargers

Features

• Closed-loop technology
• Galvanic isolation between primary and secondary circuits
• High accuracy
• Fast response time
• Low temperature drift
• Compact design

Benefits

• Precise current measurement improves control and monitoring accuracy.
• Galvanic isolation enhances safety and protects sensitive circuits.
• Fast response time enables real-time control in dynamic applications.
• Robust performance in harsh industrial environments.
• Easy integration into existing systems.

Technical Specifications

The LAX 100-NP typically measures currents up to 100A. It provides galvanic isolation between the primary and secondary circuits. The output signal is proportional to the measured current. It features a low temperature drift to maintain accuracy over a wide operating temperature range. The specific supply voltage and operating temperature range can vary depending on the model, so it's essential to refer to the datasheet.

The LAX 100-NP utilizes advanced magnetic sensing and signal processing techniques to achieve high accuracy and linearity. Its robust design and galvanic isolation make it suitable for demanding industrial applications.
