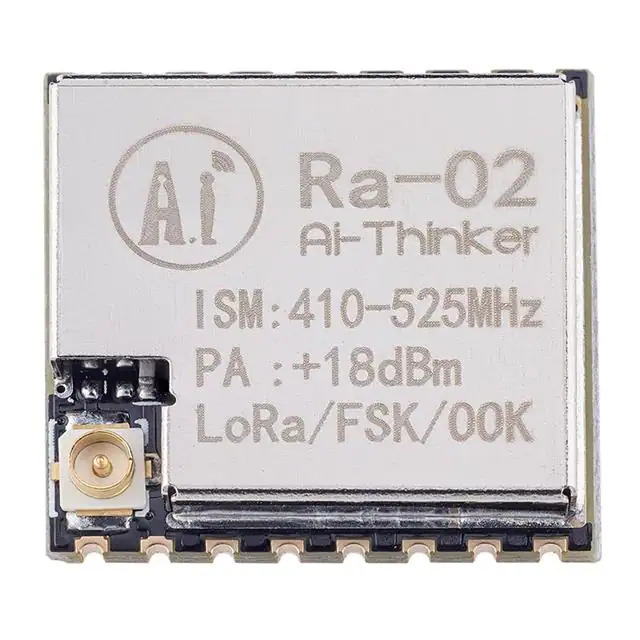

Same model may have multiple batches, images only for reference.

RA-02

Name: RA-02
Brand: Ai-Thinker
SKU: 1370942
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RA-02
Manufacturer	Ai-Thinker
Catalog	RF Transceiver Modules
Description	LORA MODULE, 433MHZ, SEMTECH SX1
Datasheet	RA-02 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Transceiver Modules and Modems
Mfr	Ai-Thinker
Series	-
Package	Tape & Reel
Product Status	Active
RF Family/Standard	General ISM < 1GHz
Protocol	LoRa™
Modulation	FSK, GFSK, GMSK, MSK, OOK
Frequency	410MHz ~ 525MHz
Data Rate	300kbps
Power - Output	18dBm
Sensitivity	-141dBm
Serial Interfaces	SPI
Antenna Type	Antenna Not Included, I-PEX
Utilized IC / Part	-
Memory Size	-
Voltage - Supply	2.5V ~ 3.7V
Current - Receiving	12.15mA
Current - Transmitting	93mA ~ 97mA
Mounting Type	Surface Mount
Temperature Range - Operating	-30°C ~ 85°C
Package / Case	16-SMD Module
MSL Level	1 (Unlimited)
ECCN	5A991G
HTSUS	8517.62.0090
Win Source Part Number	1370942-RA-02
Ultra Librarian 3D Model	Ultra Librarian RA-02 CAD Model

Description

The Ai-Thinker 1370942-RA-02 is a 410MHz to 525MHz RF transceiver module designed for general ISM applications.

Frequency Range: 410MHz to 525MHz
Operating Temperature: -30°C to 85°C
Data Rate: 300kbps
Power Output: 18dBm
Sensitivity: -141dBm
Antenna: I-PEX
Protocol: LoRa™
Product Status: Active
Mounting Type: Surface Mount
Receiving Current: 12.15mA
Transmitting Current: 93mA to 97mA
