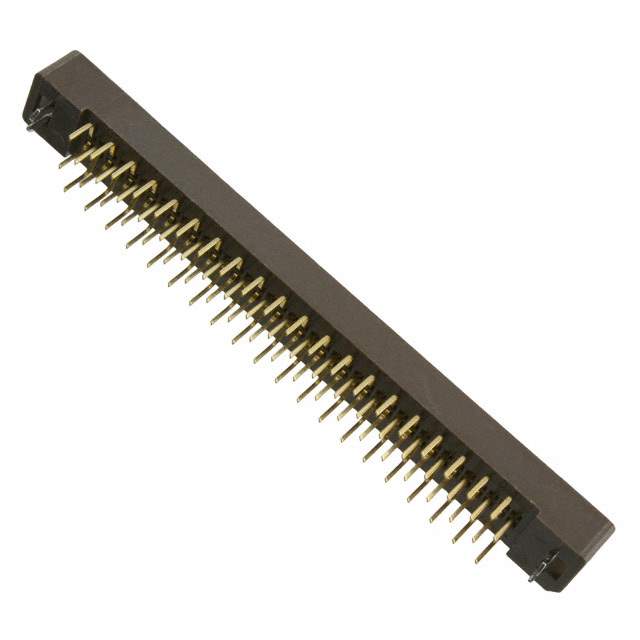

Same model may have multiple batches, images only for reference.

P50LE-080P1-R1-DA

Name: P50LE-080P1-R1-DA
Brand: 3M
SKU: 791193
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P50LE-080P1-R1-DA
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN PLUG 80POS STR .050" GOLD / Conn Rectangular M 80 POS 2.54mm Solder ST Thru-Hole Box
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	3M
Series	Pak 50, P50LE
Packaging	Bulk
Connector Type	Plug
Contact Type	Center Strip Contact
Pitch - Mating	0.050" (1.27mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.197" (5.00mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Features	Board Lock
Operating Temperature Range	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Brown
Current Rating	0.5A
Contact Finish Thickness - Post	Flash
Win Source Part Number	791193-P50LE-080P1-R1-DA
Popularity	Medium
Supply and Demand Status	Limited
Family Name	P50LE
Introduction Date	March 01, 2006
ECCN	EAR99
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian P50LE-080P1-R1-DA CAD Model

Description

The P50LE-080P1-R1-DA is a connector plug manufactured by 3M.

Series: Connectors and Interconnects
Positions: 80
Mounting: Through Hole
Operating Temperature Range: -55°C to 85°C
Housing: Shrouded 4 Wall
Contact Material: Phosphor Bronze
ECCN: EAR99
Popularity: Medium
