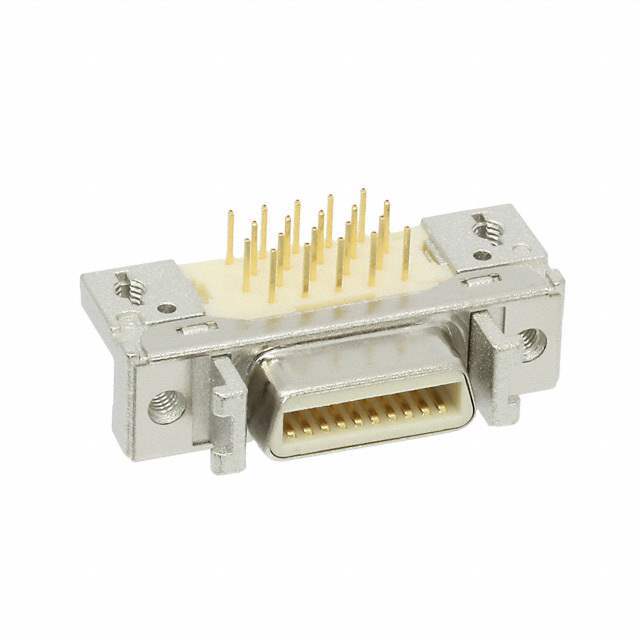

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer 3M
Category Connectors, Interconnects > D-Sub, D-Shaped Connectors > Centronics Connectors
Packaging Box
Part Status Active
Connector Type Receptacle
Number of Positions 20
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Features Shielded
Ultra Librarian 3D Model Ultra Librarian N10220-5212PC CAD Model

Description

• Wiper-on-wiper contact for reliable repetitive plugging

• Rugged die cast metal case construction

• SMT compatible PCT insulator material

• Screw or ground lock for reliable PCB retention

• Interface latch design for connection stability

• IEEE 1284C Interface as a 36 contact connector

• Contacts: 14, 20, 26, 36, 40, 50, 68, 80 and 100
