Same model may have multiple batches, images only for reference.

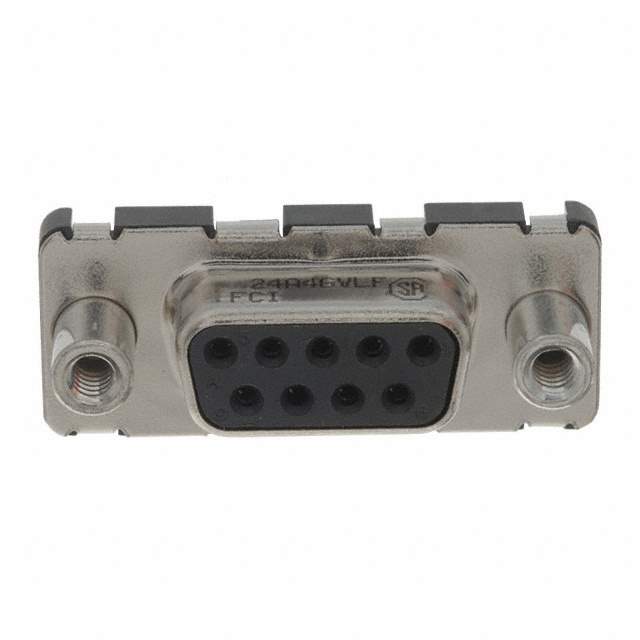

D09S24A4GV00LF Real Image
Same model may have multiple batches, images only for reference.

D09S24A4GV00LF

Part No D09S24A4GV00LF
Manufacturer Amphenol FCI
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB RCPT 9POS VERT SOLDER / RECEPTACLE STD EUROPE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Mounting Style Through Hole
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Features Board Lock
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Temperature Range - Operating -55°C ~ 125°C
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811654-D09S24A4GV00LF
Ultra Librarian 3D Model Ultra Librarian D09S24A4GV00LF CAD Model

Description

The D09S24A4GV00LF is a connector product manufactured by Amphenol ICC (FCI).

  • Packaging: Tray
  • Mounting Type: Through Hole
  • Positions: 9
  • Rows: 2
  • Connector Type: Receptacle
  • Contact Type: Signal
  • Termination: Solder
  • Contact Finish: Gold, Flash
  • Voltage Rating: 300V
  • Flammability Rating: UL94 V-0
  • Shell Material: Steel, Tin Plated
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Shell Size: 1 (DE, E)
  • Operating Temperature: -55°C to 125°C
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 30
  • MSL Level: 1 (Unlimited)
  • Current Rating: 5A
