Products specifications Report Issue?

Category Cables, Wires>Flat Ribbon Cables
Mfr 3M
Series 3754
Package Spool
Cable Type Flat Cable
Number of Conductors 40
Pitch 0.025" (0.64mm)
Length 300.0' (91.44m)
Wire Gauge 30 AWG
Conductor Strand 7 Strands / 38 AWG
Shielding Unshielded
Jacket Color Gray
Ribbon Thickness 0.025" (0.64mm)
Ribbon Width 1.000" (25.40mm)
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Voltage 30 V
Temperature Range - Operating -20°C ~ 105°C
Ratings UL Style 20596
Conductor Material Copper, Tinned
Insulation Resistance 10GOhm
First Conductor Mark Red
Base Product Number 3754
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Win Source Part Number 1316282-3754/40 300
Ultra Librarian 3D Model Ultra Librarian 3754/40 300 CAD Model

Description

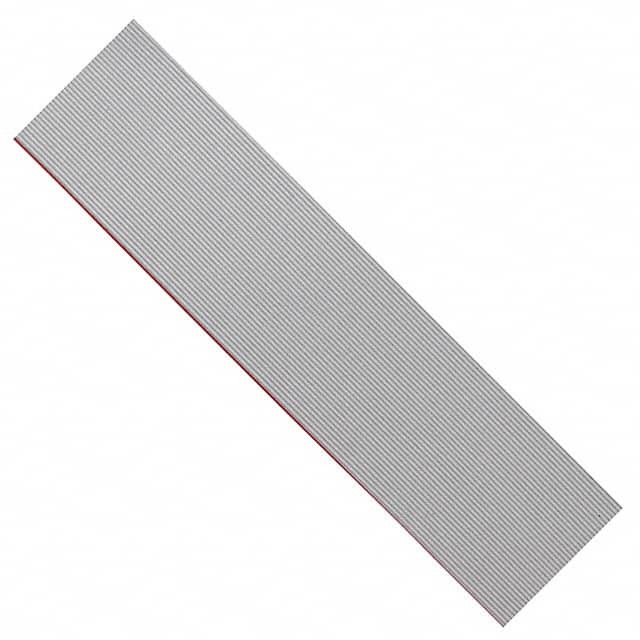

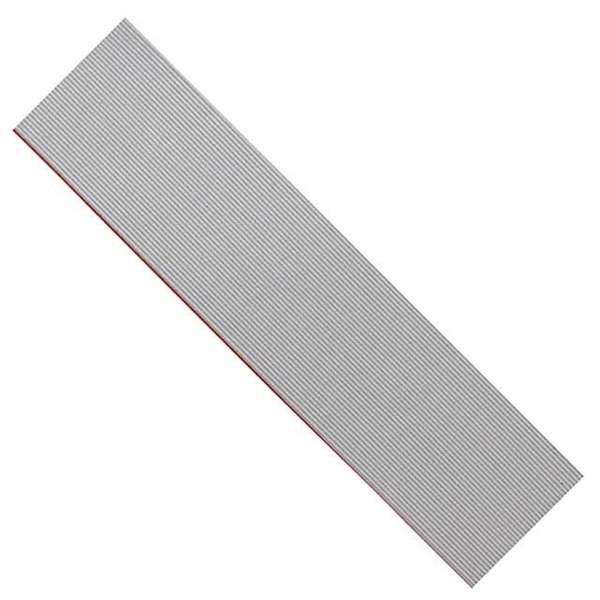

This spool of flat ribbon cable is a high-quality product from 3M, a trusted name in electronic components.

  • Pitch: 0.025 inches (0.64mm)
  • Conductors: 40
  • Shielding: Unshielded
  • Voltage Rating: 30V
  • Insulation Material: Poly-Vinyl Chloride (PVC)
  • Insulation Color: Gray
  • Temperature Range: -20°C to 105°C
  • Ribbon Thickness: 0.025 inches (0.64mm)
  • Ribbon Width: 1.000 inches (25.40mm)
  • Conductor Material: Copper, Tinned
  • Conductor Strand: 7 strands with a 38 AWG
  • UL Style: 20596
  • Insulation Resistance: 10GOhm
  • First Conductor Mark: Red
  • Packaging: Spool
