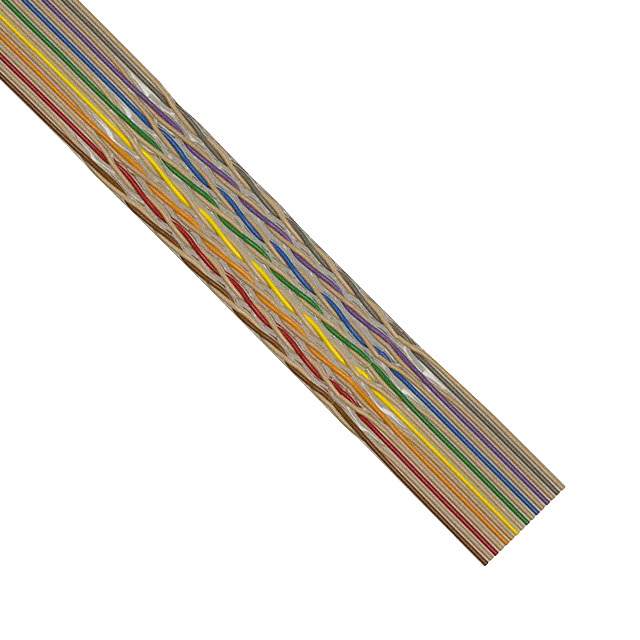

1700/16 100SF Real Image
Same model may have multiple batches, images only for reference.

1700/16 100SF

Part No 1700/16 100SF
Manufacturer 3M
Catalog Flat Ribbon Cables
Description CBL RIBN 16COND TWIST-PAIR 5' / Flat Ribbon Cable Multiple 16 (8 Pair Twisted) Conductors 0.050" (1.27mm) Flat Twisted Pair 5.0' (1.52m)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires>Flat Ribbon Cables
Mfr 3M
Series 1700
Package Bulk
Cable Type Flat Twisted Pair
Number of Conductors 16 (8 Pair Twisted)
Pitch 0.050" (1.27mm)
Length 5.0' (1.52m)
Wire Gauge 28 AWG
Conductor Strand 7 Strands / 36 AWG
Shielding Unshielded
Jacket Color Multiple
Ribbon Thickness 0.080" (2.03mm)
Ribbon Width 0.800" (20.32mm)
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Voltage 300 V
Temperature Range - Operating -20°C ~ 105°C
Ratings UL Style 20462
Conductor Material Copper, Tinned
Insulation Resistance 1GOhms
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8544.49.3080
Other Names MC16F-5
Standard Package 1
Win Source Part Number 1219829-1700/16 100SF
Ultra Librarian 3D Model Ultra Librarian 1700/16 100SF CAD Model

Description

The 3M 1219829-1700/16 100SF is a flat ribbon cable with a pitch of 0.050 inches (1.27mm) and a length of 5.0 feet (1.52m).

  • Pitch: 0.050 inches (1.27mm)
  • Length: 5.0 feet (1.52m)
  • Conductors: 16 (8 Pair Twisted)
  • Shielded: Yes
  • Cable Type: Flat Twisted Pair
  • Voltage: 300V
  • Ribbon Thickness: 0.080 inches (2.03mm)
  • Ribbon Width: 0.800 inches (20.32mm)
  • Insulation Resistance: 1GOhms
  • Operating Temperature: -20°C to 105°C
