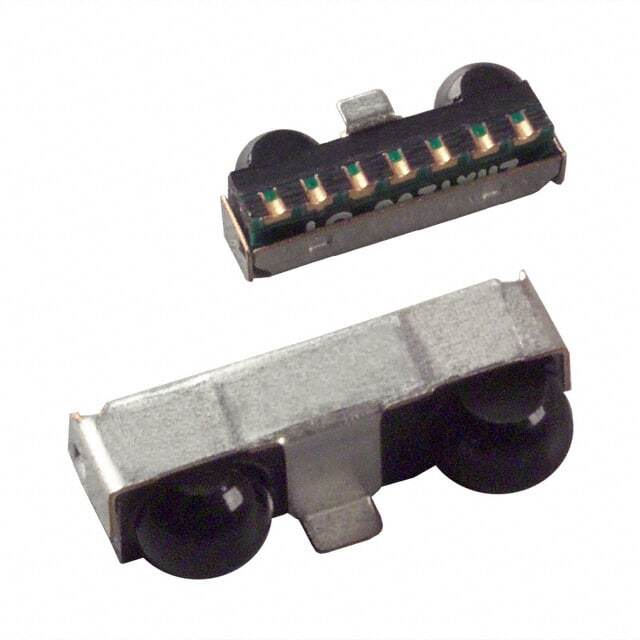

ZHX1403MA115TH2090TR
Same model may have multiple batches, images only for reference.

ZHX1403MA115TH2090TR

Part No ZHX1403MA115TH2090TR
Manufacturer Zilog
Catalog IrDA Transceiver Modules
Description IRDA MODULE 115.2KBPS 7SMD / 115.2kbs (SIR) IRDA Transceiver Side View
Datasheet
ZHX1403MA115TH2090TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - IrDA Transceiver Modules
Mfr Zilog
Series SIR UltraSlim™
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Data Rate 115.2kbs (SIR)
Voltage - Supply 2.4 V ~ 3.6 V
Idle Current, Typ @ 25°C 100 nA
Link Range, Low Power 1m
Orientation Side View
Temperature Range - Operating -30°C ~ 85°C
Size 7.3mm x 2.8mm x 1.9mm
Standards IrPHY 1.4
Shutdown Yes
Standard Package 3,500 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 939983-ZHX1403MA115TH2090TR
Ultra Librarian 3D Model Ultra Librarian ZHX1403MA115TH2090TR CAD Model

Description

The Zilog 939983-ZHX1403MA115TH2090TR is an IrDA transceiver module designed for sensor and transducer applications.

  • Series: SIR UltraSlim™
  • Package Type: Tape & Reel (TR) Cut Tape (CT)
  • Data Rate: 115.2kbs (SIR)
  • Voltage Supply Range: 2.4V to 3.6V
  • Size: 7.3mm x 2.8mm x 1.9mm
  • Standard: IrPHY 1.4
  • Idle Current Consumption: 100 nA
  • Link Range: 1m in low power mode
  • Feature: Shutdown feature
  • Standard Package: 3,500 pieces
