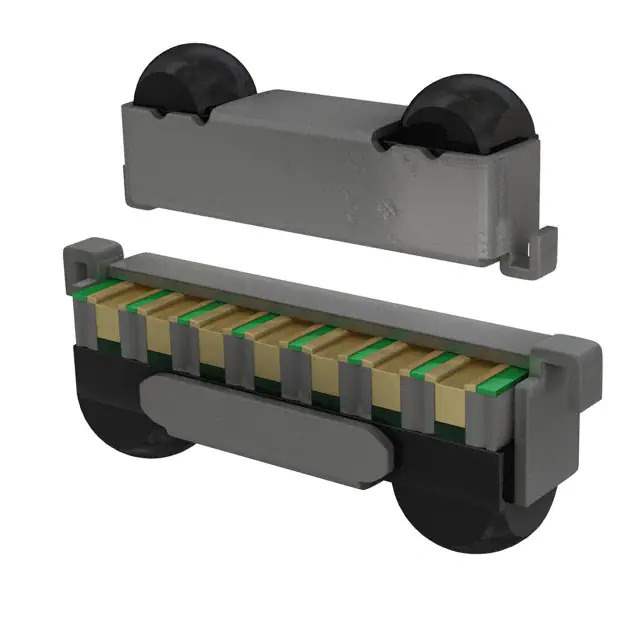

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - IrDA Transceiver Modules
Mfr Panasonic
Package Tape & Reel
Product Status Obsolete
Data Rate 115.2kbs (SIR)
Voltage - Supply 2.4 V ~ 3.6 V
Idle Current, Typ @ 25°C 200 nA
Link Range, Low Power 50cm
Orientation Top View
Temperature Range - Operating -30°C ~ 85°C
Size 8.2mm x 1.6mm x 2.0mm
Shutdown Yes
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 867028-CND0208A
Ultra Librarian 3D Model Ultra Librarian CND0208A CAD Model

Description

The 867028-CND0208A is an IrDA Transceiver Module in the Sensors, Transducers category.

  • Data Rate: 115.2kbs (SIR)
  • Link Range: 50cm in low power mode
  • Shutdown Option: For power-saving purposes
  • Voltage Supply: 2.4V to 3.6V
  • Idle Current: 200nA @ 25°C
  • Size: 8.2mm x 1.6mm x 2.0mm
  • Manufacturer: Panasonic
  • Standard Package: 2,000 pcs
  • Product Status: Obsolete
  • Moisture Sensitivity Level: 3 (168 Hours)
  • ECCN: EAR99
