Same model may have multiple batches, images only for reference.

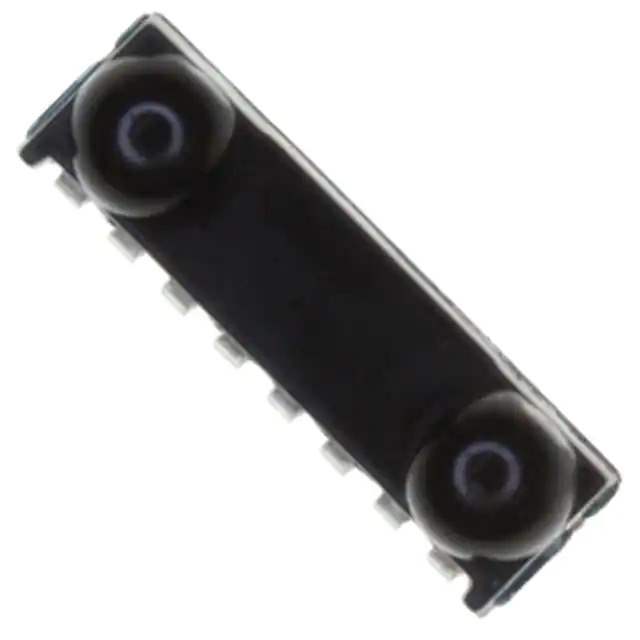

TFDU4300-TT1 Real Image
Same model may have multiple batches, images only for reference.

TFDU4300-TT1

Part No TFDU4300-TT1
Manufacturer Vishay
Catalog IrDA Transceiver Modules
Description TXRX IRDA 115.2KBIT 2.5MM 8-SMD / 115.2kbs (SIR) IRDA Transceiver Top View
Datasheet
TFDU4300-TT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - IrDA Transceiver Modules
Mfr Vishay
Package Tape & Reel
Product Status Obsolete
Data Rate 115.2kbs (SIR)
Voltage - Supply 2.4 V ~ 5.5 V
Idle Current, Typ @ 25°C 75 µA
Link Range, Low Power 70cm
Orientation Top View
Temperature Range - Operating -30°C ~ 85°C
Size 8.5mm x 2.9mm x 2.5mm
Standards IrPHY 1.0
Shutdown Yes
Base Product Number TFDU4300
Standard Package 750 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 936399-TFDU4300-TT1
Ultra Librarian 3D Model Ultra Librarian TFDU4300-TT1 CAD Model

Description

The 936399-TFDU4300-TT1 is an IrDA transceiver module designed for data communication applications.

  • Orientation: Top View
  • Packaging: Tape and Reel
  • Data Rate: 115.2kbs (SIR)
  • Supply Voltage: 2.4V to 5.5V
  • Standard: IrPHY 1.0
  • Idle Current: 75μA @ 25°C
  • Link Range: 70cm in low power mode
  • Shutdown Option: Yes
  • Size: 8.5mm x 2.9mm x 2.5mm
  • Operating Temperature: -30°C to 85°C
  • ECCN: EAR99
  • REACH: Not affected
  • Manufacturer: Vishay
  • Status: Previously active
