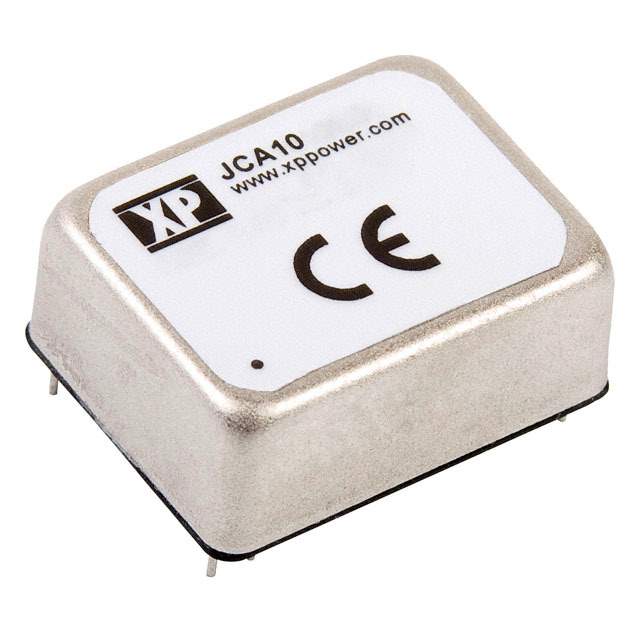

JCA1024D01

Name: JCA1024D01
Brand: XP Power
SKU: 1351110
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	JCA1024D01
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 10W / Isolated Module DC DC Converter 2 Output 5V -5V 800mA, 800mA 18V - 36V Input
Datasheet	JCA1024D01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JCA (10W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	800mA, 800mA
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	85%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 8 Leads
Size / Dimension	1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Standard Number	62368-1
Base Product Number	JCA1024
Standard Package	16
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1351110-JCA1024D01
Ultra Librarian 3D Model	Ultra Librarian JCA1024D01 CAD Model

Alternative Products

Description

The XP Power JCA1024D01 is a 10W isolated module DC-DC converter with overcurrent protection (OCP), overvoltage protection (OVP), short circuit protection (SCP), and undervoltage lockout (UVLO) features.

Package: 16-DIP
Packaging: Tube
Application: ITE (Commercial)
Voltage Isolation: 1.5kV
Number of Outputs: 2
Current Output (Max): 800mA, 800mA
Voltage Output: 5V, -5V
Efficiency: 85%
Package / Case: 24-DIP Module, 8 Leads
Temperature Range: -40°C to 100°C
ECCN: EAR99
