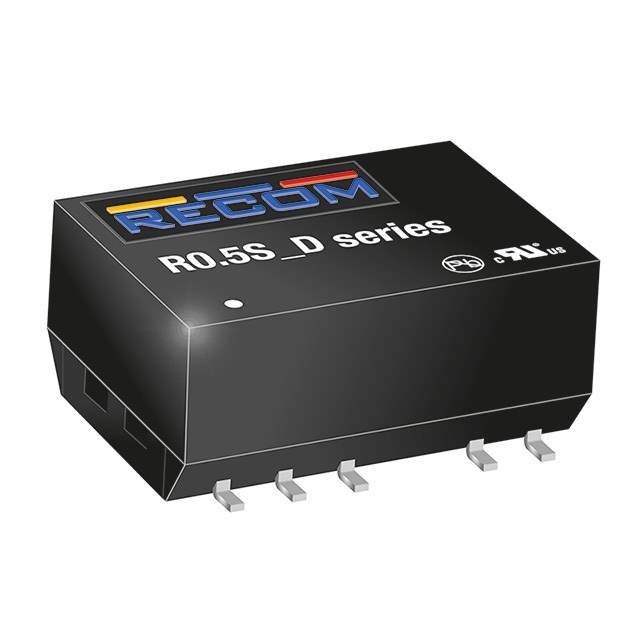

Same model may have multiple batches, images only for reference.

R0.5S-0505

Name: R0.5S-0505
Brand: Recom Power
SKU: 286720
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	R0.5S-0505
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	0.5W DC/DC-CONVERTER ECONOLINE
Datasheet	R0.5S-0505 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Recom Power
Series	ECONOLINE R0.5S
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	100mA
Power (Watts) - Manufacture Series	500mW
Voltage - Isolation	1kV (1000V)
Applications	ITE (Commercial)
Features	SCP
Mounting Style	SMD/SMT
Package	8-SMD Module (5 Leads)
Size / Dimension	0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Operating Temperature Range	-40°C ~ 100°C
Efficiency	72%
Power (Watts) - Max	500mW
Win Source Part Number	142277-R0.5S-0505
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian R0.5S-0505 CAD Model

Alternative Products

Description

The ECONOLINE R0.5S is a DC-DC converter designed for use in power supplies on board mount DC-DC converters.

Protection: SCP protection
Mounting Style: SMD/SMT
Application: ITE (Commercial)
Voltage Isolation: 1kV (1000V)
Output: Single
Maximum Output Current: 100mA
Output Voltage: 5V
Package: 8-SMD module (5 leads)
Dimensions: 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm)
Efficiency: 72%
Power: 500mW
Popularity: Medium
Supply and Demand Status: Limited
ECCN: EAR99
REACH: Unaffected
HTSUS Code: 8504.40.9580
Manufacturer: Recom Power
Other Names: 142277-R0.5S-0505
