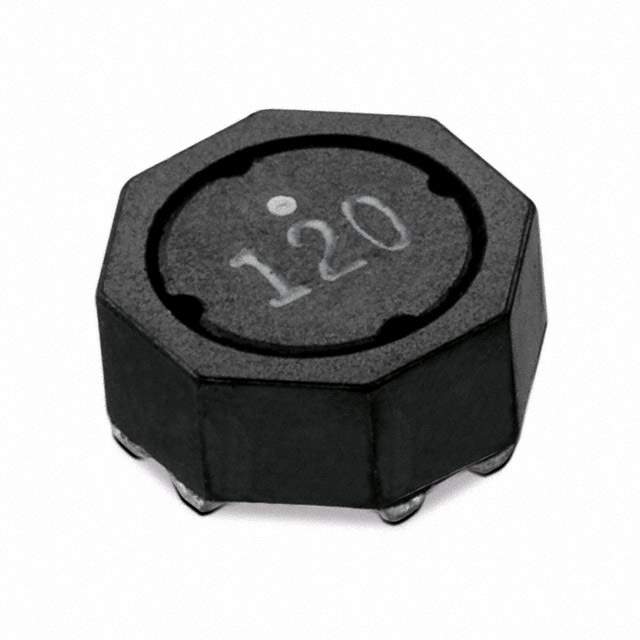

74489430100 Real Image1 74489430100 Real Image2
Same model may have multiple batches, images only for reference.
74489430100 Real Image1 74489430100 Real Image2
74489430100 Real Image1 74489430100 Real Image2
Same model may have multiple batches, images only for reference.

74489430100

Part No 74489430100
Manufacturer Wurth Electronics Inc
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 10UH SMD / Shielded 2 Coil Inductor Array 40 µH Inductance - Connected in Series 10 µH Inductance - Connected in Parallel 215mOhm Max DC Resistance (DCR) - Parallel 1 A Nonstandard
Datasheet
74489430100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Wurth Electronics Inc
Series WE-TDC
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 10 µH
Inductance - Connected In Series 40 µH
Tolerance ±20%
Current Rating - Parallel 1 A
Current Rating - Series 500 mA
Current Saturation - Parallel 1.65 A
Current Saturation - Series 825 mA
DC Resistance (DCR) - Parallel 215mOhm Max
DC Resistance (DCR) - Series -
Shielding Shielded
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height 0.083" (2.10mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 550 pcs
Win Source Part Number 1381136-74489430100
Ultra Librarian 3D Model Ultra Librarian 74489430100 CAD Model

Description

The WE-TDC series is an array of signal transformers.

  • Shielded: Yes
  • Package: Nonstandard
  • Number of Coils: 2
  • Inductance (Series): 40 µH
  • Inductance (Parallel): 10 µH
  • Current Rating (Series): 500 mA
  • Current Rating (Parallel): 1 A
  • Current Saturation (Series): 825 mA
  • Current Saturation (Parallel): 1.65 A
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mountable
  • Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
