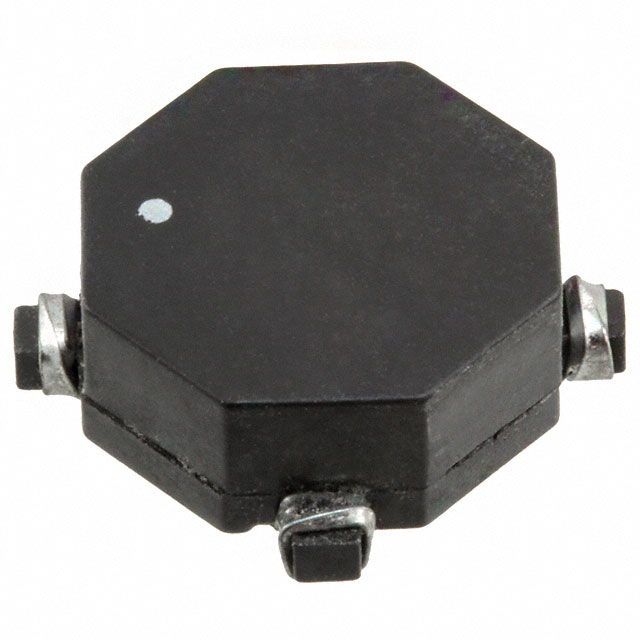

CTX50-1 Eaton Bussmann
Same model may have multiple batches, images only for reference.

CTX50-1

Part No CTX50-1
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 50.52UH SMD
Datasheet
CTX50-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 202.07μH
Inductance - Connected In Parallel 50.52μH
Tolerance ±20%
Current Rating - Parallel 700mA
Current Rating - Series 350mA
DC Resistance (DCR) - Parallel 316 mOhm Max
DC Resistance (DCR) - Series 1.263 Ohm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.165" (4.19mm)
Win Source Part Number 244908-CTX50-1
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CTX50-1 CAD Model

Description

CTX50-1 Inductor

The CTX50-1 is designed for optimal performance in power-sensitive applications. This inductor delivers precision with minimal power loss, making it an ideal choice for projects demanding efficiency and reliability. Its rugged construction ensures it withstands tough working conditions.

Features and Benefits

  • High current capacity with minimal power loss.
  • Rugged design suitable for industrial applications.
  • Wide operating temperature range.

Applications

  • Switching regulators
  • Automotive electronics
  • Telecommunications equipment
