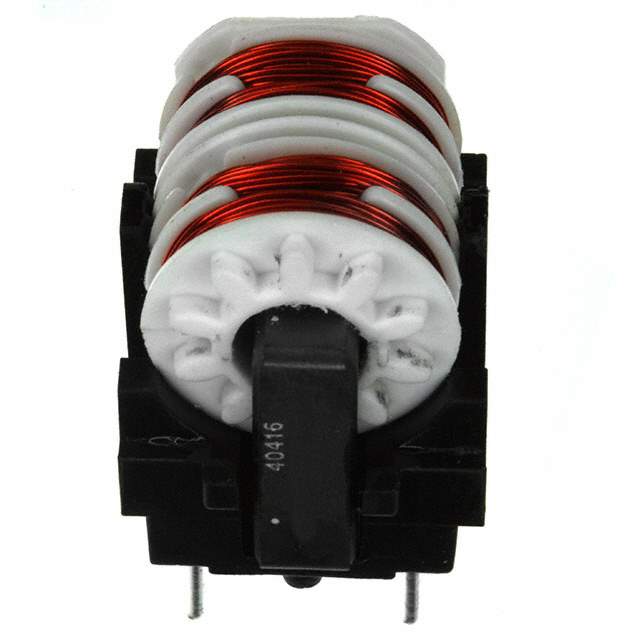

7448640416 Real Image
Same model may have multiple batches, images only for reference.

7448640416

Part No 7448640416
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 18MH 500MA 2LN TH / 18 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1.2Ohm (Typ)
Datasheet
7448640416 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Würth Elektronik
Packaging Tube
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 18 mH @ 10 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 1.2Ohm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Through Hole
Size / Dimension 0.835" L x 0.654" W (21.20mm x 16.60mm)
Height (Max) 0.886" (22.50mm)
Case / Package Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 732-1678-5
Standard Package 120
Win Source Part Number 1328209-7448640416
Ultra Librarian 3D Model Ultra Librarian 7448640416 CAD Model

Description

The Wurth Elektronik is a high-quality electronic component that is designed to meet the needs of various electronic devices.

  • Manufacturer: Wurth Elektronik
  • Component Type: Common Mode Choke Filter
  • Size/Dimension: 0.835" L x 0.654" W (21.20mm x 16.60mm)
  • Maximum Current Rating: 500mA
  • Win Source Part Number: 1328209-7448640416
