Same model may have multiple batches, images only for reference.

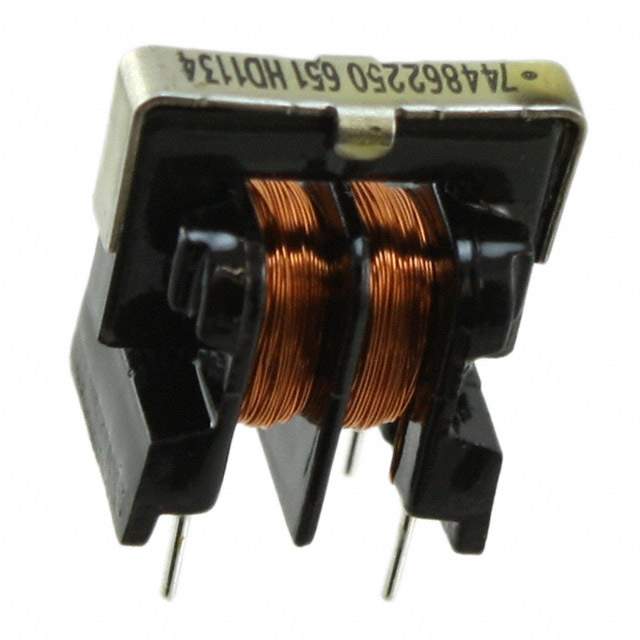

744862250 Real Image
Same model may have multiple batches, images only for reference.

744862250

Part No 744862250
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 25MH 250MA 2LN TH / 25 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 250mA DCR 3.6Ohm
Datasheet
744862250 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Würth Elektronik
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 25 mH @ 10 kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 3.6Ohm
Voltage Rating - AC 400V
Temperature Range - Operating -40°C ~ 125°C
Mounting Through Hole
Size / Dimension 0.669" L x 0.433" W (17.00mm x 11.00mm)
Height (Max) 0.669" (17.00mm)
Case / Package Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 732-3145-5,732-3145,732-3145-5-ND,744862250
Standard Package 88
Win Source Part Number 1328220-744862250
Ultra Librarian 3D Model Ultra Librarian 744862250 CAD Model

Description

The Würth Elektronik 744862250 is a common mode choke used for power line filtering.

  • Voltage Rating: 400V
  • Current Rating: 250mA
  • Inductance: 25 mH @ 10 kHz
  • DC Resistance (DCR): 3.6Ohm (Max)
  • Mounting: Through-hole
  • Package: Vertical, 4 PC Pin
  • Dimension: 0.669" L x 0.433" W (17.00mm x 11.00mm)
  • Height: 0.669" (17.00mm)
  • Compliance: ROHS3
