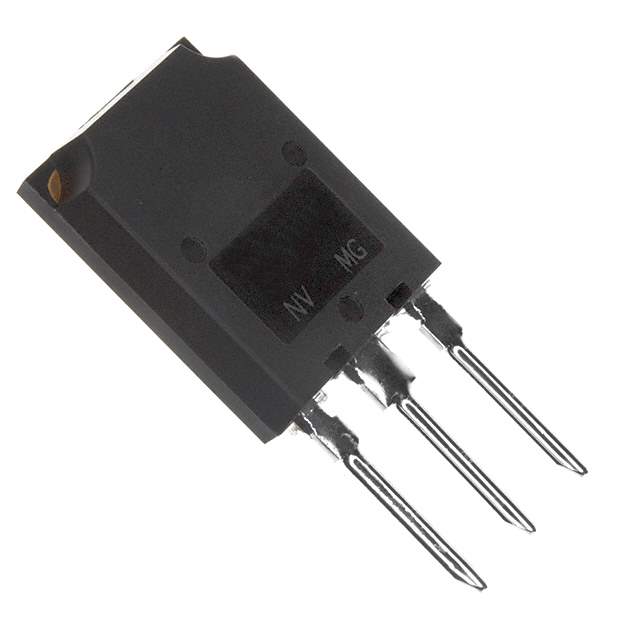

Same model may have multiple batches, images only for reference.

IRFPS43N50K

Name: IRFPS43N50K
Brand: Vishay
SKU: 605150
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IRFPS43N50K
Manufacturer	Vishay
Catalog	FETs - Single
Description	Power MOSFET(Vdss=500V, Rds(on)typ.=0.078ohm, Id=47A) \| MOSFET N-CH 500V 47A SUPER247
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay Siliconix
Packaging	Tube
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	500V
Id - Continuous Drain Current	47A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	90mOhm at 28A, 10V
Gate Source Voltage(th) (Maximum) at Id	5V at 250μA
Gate Charge (Qg) (Maximum) at Vgs	350nC at 10V
Gate Source Voltage (Maximum)	±30V
Input Capacitance (Ciss) (Maximum) at Vds	8310pF at 25V
Power Dissipation (Maximum)	540W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	Through Hole
Supplier Device Package	SUPER-247 (TO-274AA)
Manufacturer Package	TO-274AA
Manufacturer Pack Quantity	500
MSL Level	1 (Unlimited)
Win Source Part Number	1187838-IRFPS43N50K
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRFPS43N50K CAD Model

Description

The Vishay Siliconix IRFPS43N50K is a MOSFET technology-based transistor with an N-Channel polarity.

Technology: MOSFET
Polarity: N-Channel
Package: TO-274AA
Mounting Style: Through-Hole
Power Dissipation (Maximum): 540W
Vds - Drain-Source Breakdown Voltage: 500V
Continuous Drain Current: 47A
Rds On (Maximum) @ Id, Vgs: 90mOhm @ 28A, 10V
Gate Source Voltage (th) (Maximum) @ Id: 5V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs: 350nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds: 8310pF @ 25V
Supply and Demand Status: Balanced
Manufacturer Pack Quantity: 500
MSL Level: 1 (Unlimited)
Operating Temperature: -55°C ~ 150°C
