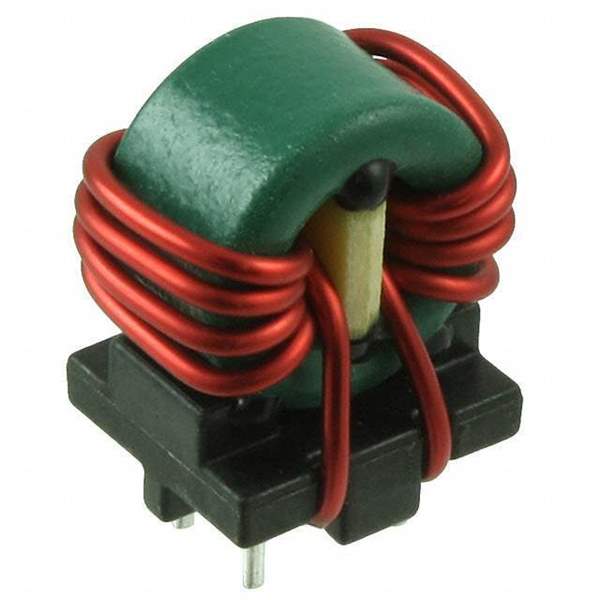

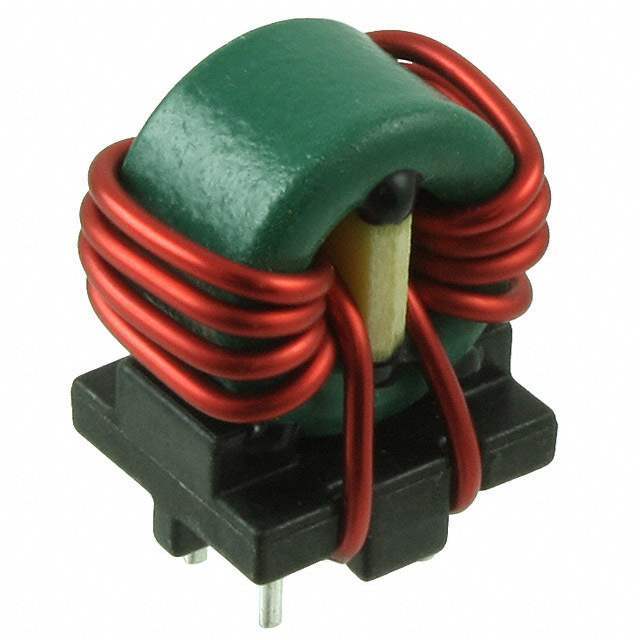

7448421016 Würth Elektronik
Same model may have multiple batches, images only for reference.

7448421016

Part No 7448421016
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 16UH 10A 2LN TH
Datasheet
7448421016 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206868-7448421016
Manufacturer Würth Elektronik
Category Filters-Common Mode Chokes
Series WE-CMB
Package Tray
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 16 µH @ 100 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 3mOhm
Ultra Librarian 3D Model Ultra Librarian 7448421016 CAD Model

Description

16 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 10A DCR 3mOhm
