Same model may have multiple batches, images only for reference.

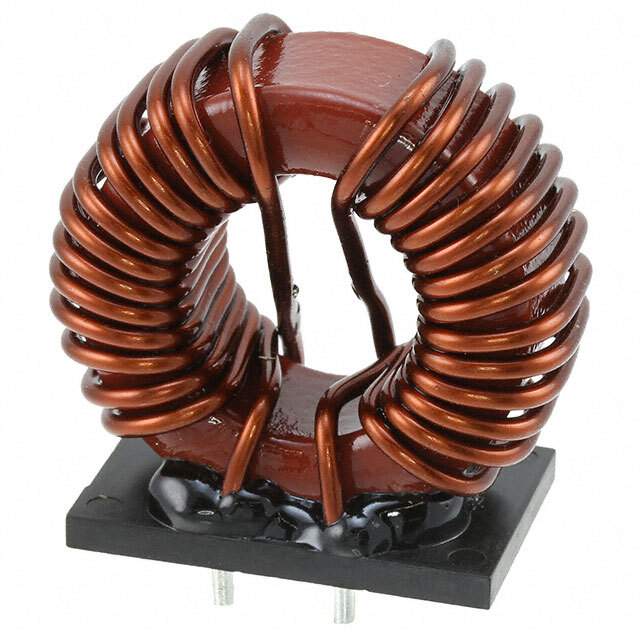

7448262013 Real Image
Same model may have multiple batches, images only for reference.

7448262013

Part No 7448262013
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1.3MH 20A 2LN TH / 1.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 20A DCR 6.2mOhm
Datasheet
7448262013 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Würth Elektronik
Series WE-CMB
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.3 mH @ 10 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 6.2mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 1.713" L x 0.925" W (43.50mm x 23.50mm)
Height (Max) 1.693" (43.00mm)
Package / Case Vertical, 4 PC Pin
Standard Package 18
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1341195-7448262013
Ultra Librarian 3D Model Ultra Librarian 7448262013 CAD Model

Description

The 1341195-7448262013 is an electronic component manufactured by Würth Elektronik.

  • Manufacturer: Würth Elektronik
  • Type: Common Mode Choke Filter
  • Series: WE-CMB
  • Popularity: High
