Same model may have multiple batches, images only for reference.

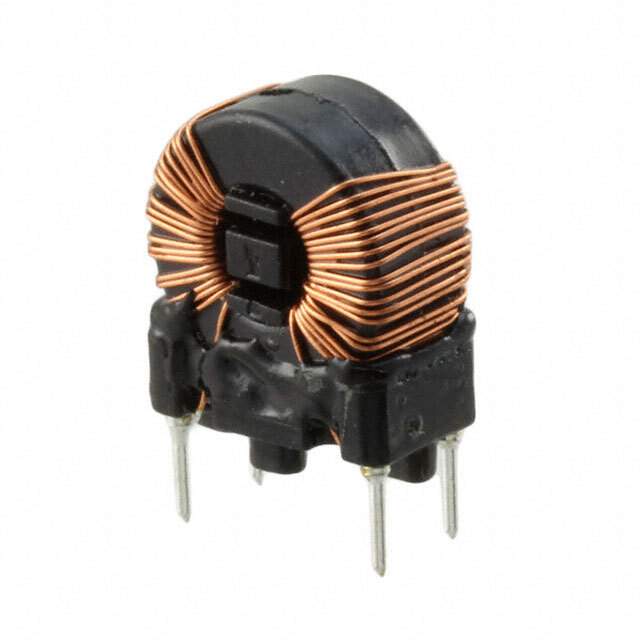

7448011305 Real Image
Same model may have multiple batches, images only for reference.

7448011305

Part No 7448011305
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 5MH 1.3A 2LN TH / 5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.3A DCR 200mOhm
Datasheet
7448011305 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-CMBNC
Package Bulk
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5 mH @ 10 kHz
Current Rating (Max) 1.3A
DC Resistance (DCR) (Max) 200mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.551" L x 0.295" W (14.00mm x 7.50mm)
Height (Max) 0.630" (16.00mm)
Package / Case Vertical, 4 PC Pin
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857613-7448011305
Ultra Librarian 3D Model Ultra Librarian 7448011305 CAD Model

Description

The WE-CMBNC series Common Mode Chokes component is a power line filter designed to suppress common mode noise.

  • Size: 0.551" length and 0.295" width
  • Voltage Rating: 250V
  • Current Rating: 1.3A
  • Height: 0.630"
  • Package: 300 pcs
  • Inductance: 5mH @ 10kHz
  • DC Resistance: 200mOhm
  • Mounting Type: Through-hole
  • Temperature Range: -40°C to 125°C
  • Status: Active product from Wurth Electronics Inc
