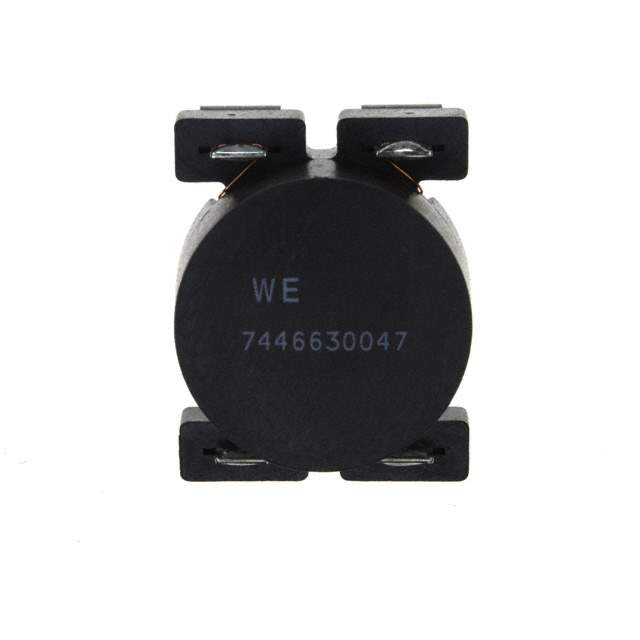

7446630047 Real Image
Same model may have multiple batches, images only for reference.

7446630047

Part No 7446630047
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 47MH 400MA 2LN SMD / 47 mH @ 10 kHz 2 Line Common Mode Choke Surface Mount 400mA DCR 2.6Ohm
Datasheet
7446630047 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Würth Elektronik
Packaging Reel - TR
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 47 mH @ 10 kHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 2.6Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Size / Dimension 0.917" L x 0.728" W (23.30mm x 18.50mm)
Height (Max) 0.453" (11.50mm)
Case / Package Horizontal, 4 PC Pad
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 732-1852-1,732-1852-2,732-1852-6
Standard Package 200
Win Source Part Number 1328208-7446630047
Ultra Librarian 3D Model Ultra Librarian 7446630047 CAD Model

Description

The 7446630047 is a common mode choke manufactured by Würth Elektronik.

  • Manufacturer: Würth Elektronik
  • Product Name: 7446630047
  • Voltage Rating: 250V AC
  • Current Rating: 400mA
  • Inductance: 47mH @ 10kHz
  • DC Resistance: 2.6Ohm Max
  • Application: Power Line Filters
  • Package: Horizontal, 4 PC pad
  • ROHS3: Compliant
