Same model may have multiple batches, images only for reference.

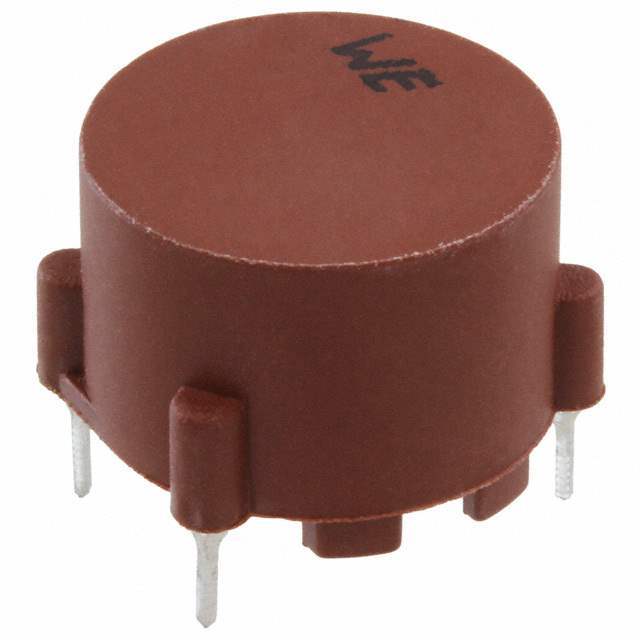

7446622002Würth Elektronik
Same model may have multiple batches, images only for reference.

7446622002

Part No 7446622002
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 2.2MH 2A 2LN TH
Datasheet
7446622002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207763-7446622002
Manufacturer Würth Elektronik
Category Filters- Common Mode Chokes
Series WE-LF
Package Tray
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.2 mH @ 10 kHz
Operating Temperature -40°C ~ 125°C
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian 7446622002 CAD Model

Description

2.2 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2A DCR 100mOhm
