Same model may have multiple batches, images only for reference.

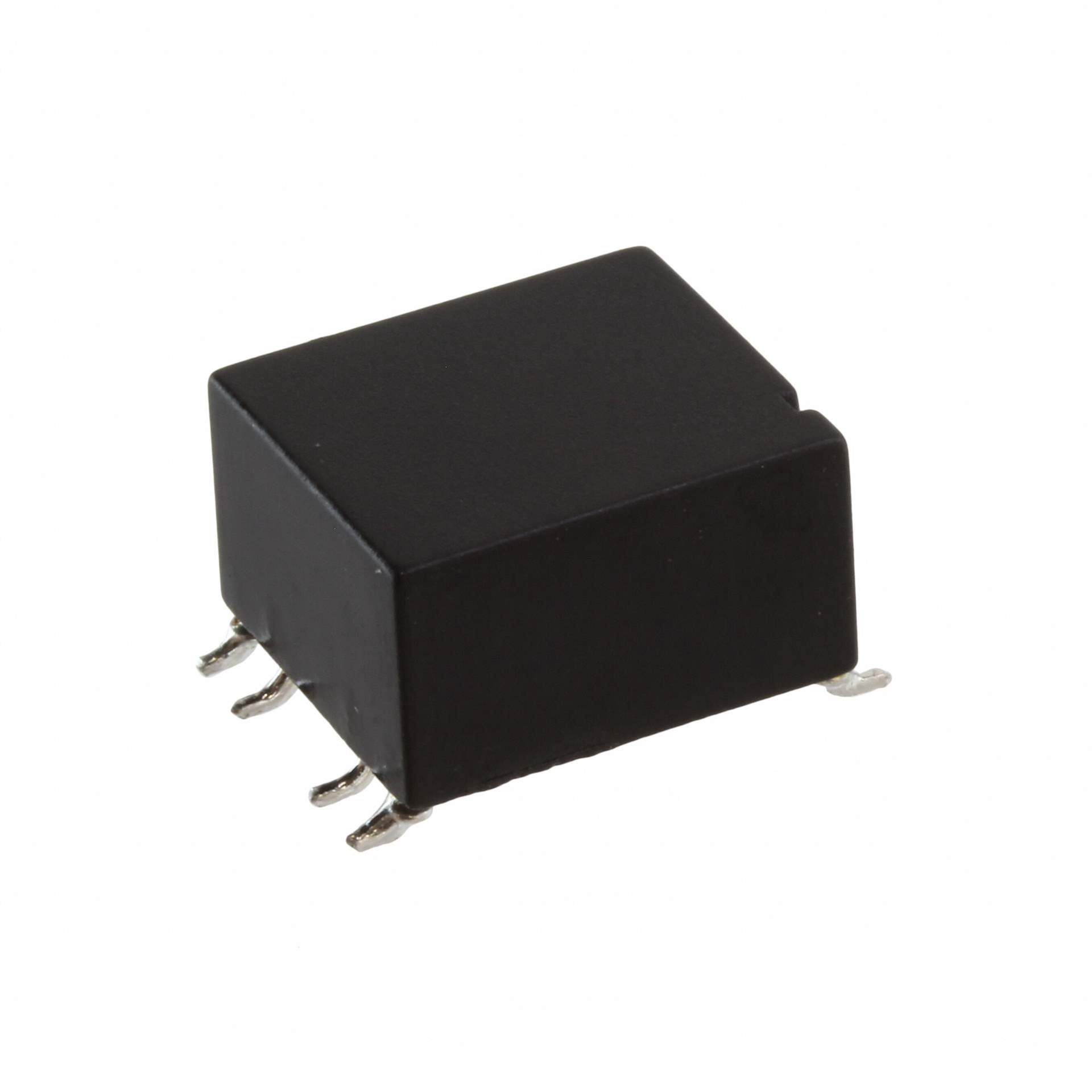

744290321 Real Image
Same model may have multiple batches, images only for reference.

744290321

Part No 744290321
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 320UH 3.25A 2LN SMD
Datasheet
744290321 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 48 Weeks
Features 2 Line Common Mode Choke Surface Mount 3.25A DCR 29mOhm
Manufacturer Wurth Electronics Inc
Series WE-UCF
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Horizontal, 4 Flat Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 732-5616-6, 732-5616-1, 732-5616-2
Quantity per package 250
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907903-744290321
Ultra Librarian 3D Model Ultra Librarian 744290321 CAD Model

Description

The Wurth Electronics Inc. WE-UCF series is a 2-line common mode choke that is surface mountable and has a maximum current rating of 3.25A.

  • DCR: 29mOhm
  • Packaging: reel package
  • Series: WE-UCF
