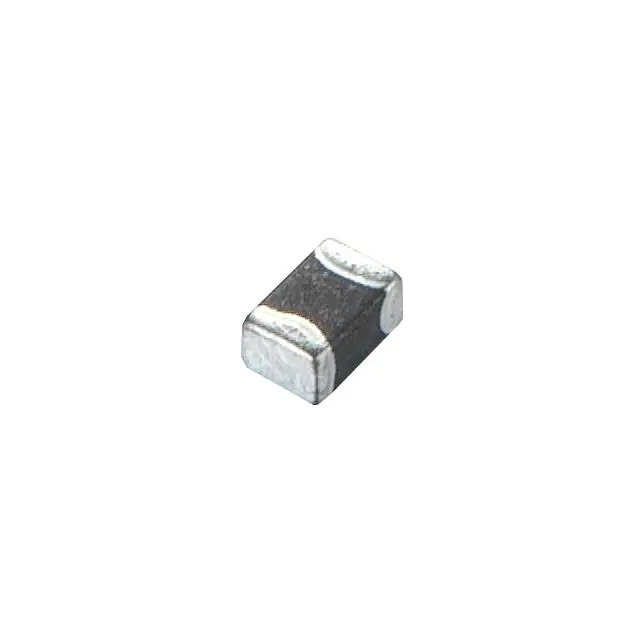

BBPY00201209500Y00 Pulse
Same model may have multiple batches, images only for reference.

BBPY00201209500Y00

Part No BBPY00201209500Y00
Manufacturer Pulse
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 50 OHM 0805 1LN
Datasheet
BBPY00201209500Y00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Pulse Electronics
Series BBPY
Package Tape & Reel
Product Status Active
Filter Type -
Number of Lines 1
Impedance @ Frequency 50 Ohms @ 100 MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 25mOhm
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Height (Max) 0.043" (1.10mm)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369137-BBPY00201209500Y00
Ultra Librarian 3D Model Ultra Librarian BBPY00201209500Y00 CAD Model

Description

The 1369137-BBPY00201209500Y00 is a ferrite bead chip filter manufactured by Pulse Electronics.

  • Series: BBPY
  • Package: 0805 (2012 Metric)
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 125°C
  • Height: 0.043" (1.10mm)
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Impedance: 50 Ohms @ 100 MHz
  • Maximum Current: 3A
  • DC Resistance (DCR): 25mOhm
  • REACH: Unaffected
  • ECCN: EAR99
