Same model may have multiple batches, images only for reference.

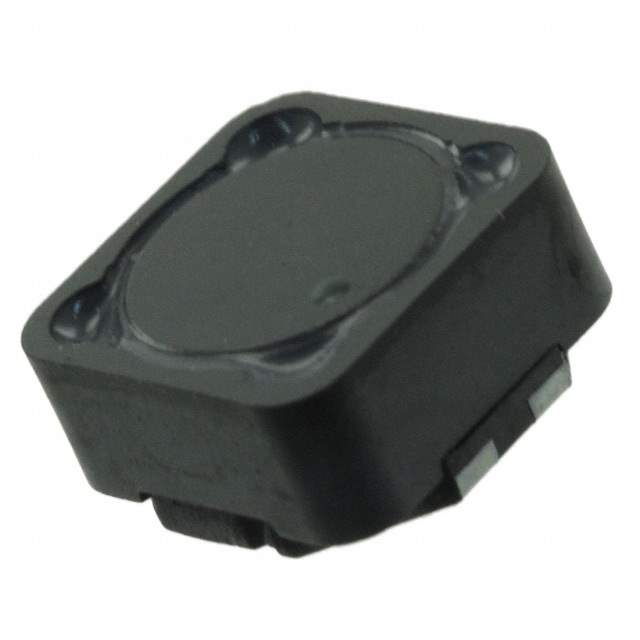

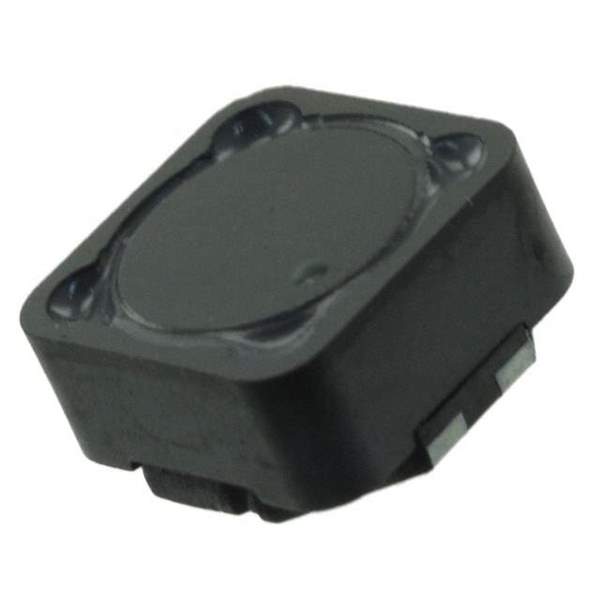

744282010 Real Image
Same model may have multiple batches, images only for reference.

744282010

Part No 744282010
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1UH 4.75A 2LN 1.6K OHM SMD / 1 μH @ 100 kHz 2 Line Common Mode Choke Surface Mount 1.6 kOhms @ 90 MHz 4.75A DCR 12mOhm
Datasheet
744282010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SCC
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 1.6 kOhms @ 90 MHz
Inductance @ Frequency 1 µH @ 100 kHz
Current Rating (Max) 4.75A
DC Resistance (DCR) (Max) 12mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max) 0.256" (6.50mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 847981-744282010
Ultra Librarian 3D Model Ultra Librarian 744282010 CAD Model

Description

The WE-SCC series is a common mode choke designed for use in filters from Wurth Electronics Inc.

  • Voltage Rating: 80V DC
  • Maximum Current Rating: 4.75A
  • Size: 0.492" x 0.492" (12.50mm x 12.50mm)
  • Height: 0.256" (6.50mm)
  • Impedance: 1.6 kOhms @ 90 MHz
  • Inductance: 1 µH @ 100 kHz
  • Package: Surface Mount
  • Application: Signal Line
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
  • Standard Package: 500 pcs
