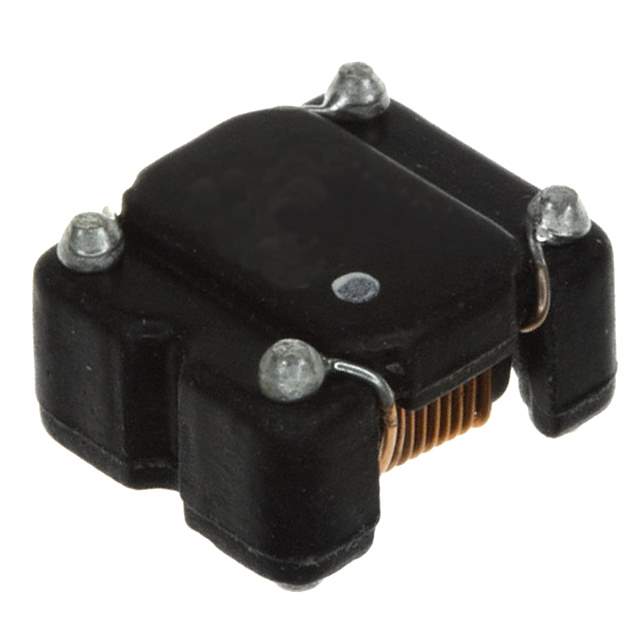

744272251 Real Image
Same model may have multiple batches, images only for reference.

744272251

Part No 744272251
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 250UH 2A 2LN 970 OHM SMD / COMMON MODE SMD LINE FILTER WE-SL5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Filter Type Power, Signal Line
Number of Lines 2
Impedance at Frequency 970 Ohms at 15MHz
Inductance at Frequency 250μH at 100kHz
Current Rating (Maximum) 2A
DC Resistance (DCR) (Maximum) 35mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Dimension 0.394" L x 0.343" W (10.00mm x 8.70mm)
Height (Maximum) 0.256" (6.50mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 800
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807853-744272251
Ultra Librarian 3D Model Ultra Librarian 744272251 CAD Model

Description

The Würth Elektronik 746387 is a power and signal line filter.

  • Maximum Current Rating: 2A
  • DC Resistance (DCR): 35mOhm
  • Impedance: 970 Ohms @ 15MHz
  • Inductance: 250μH @ 100kHz
  • Voltage Rating: 80V DC
  • Mounting Type: SMD
  • Dimension: 0.394" L x 0.343" W (10.00mm x 8.70mm)
  • Manufacturer Package: Horizontal, 4 PC Pad
  • Height: 0.256" (6.50mm)
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 800
