The TPS5430EVM-173 from Texas Instruments is a fully assembled and tested circuit for evaluating the TPS5430, a highly efficient, synchronous buck converter that provides a reliable power supply solution. This evaluation module (EVM) is designed to help both novice and expert designers quickly and efficiently prototype and test the TPS5430 buck converter's capabilities in a variety of applications.

Key Features

• Wide Input Range: The TPS5430EVM-173 operates over a broad input voltage range from 5.5V to 36V, making it suitable for a variety of power sources, including industrial supplies and automotive batteries.
• Adjustable Output Voltage: Users can adjust the output voltage from 1.22V to 25V to suit the needs of their specific application.
• High Efficiency: The synchronous step-down converter design ensures high efficiency, which is critical for reducing heat and improving system performance.
• Integrated Switch: The EVM includes a 3A, 28mΩ integrated switch, providing robust power handling capability.
• Thermal Protection: The module features thermal shutdown and overcurrent protection, safeguarding the circuit against potential damage from overheating and overloading.
• Frequency Synchronization: The TPS5430EVM-173 offers a frequency synchronization input that allows the switching frequency to be synchronized to an external clock.

Applications

The TPS5430EVM-173 is versatile and can be used in a wide range of applications, including but not limited to:

• Industrial Power Supplies
• Automotive Systems
• Point of Load Conversions
• Telecommunications Equipment
• Battery-Powered Devices

Design and Layout Considerations

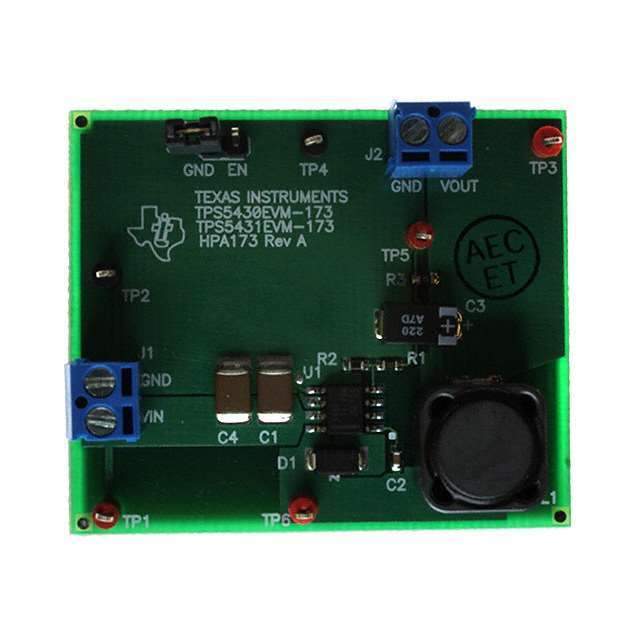

The EVM's layout is optimized for performance and ease of use, with clearly marked connections and test points. It includes all the necessary components to immediately begin evaluation, and its comprehensive design facilitates simple integration into existing systems or for use in creating new designs.

With the TPS5430EVM-173, Texas Instruments provides an invaluable tool for engineers and designers seeking a fast, efficient, and reliable solution for their DC/DC conversion needs.
