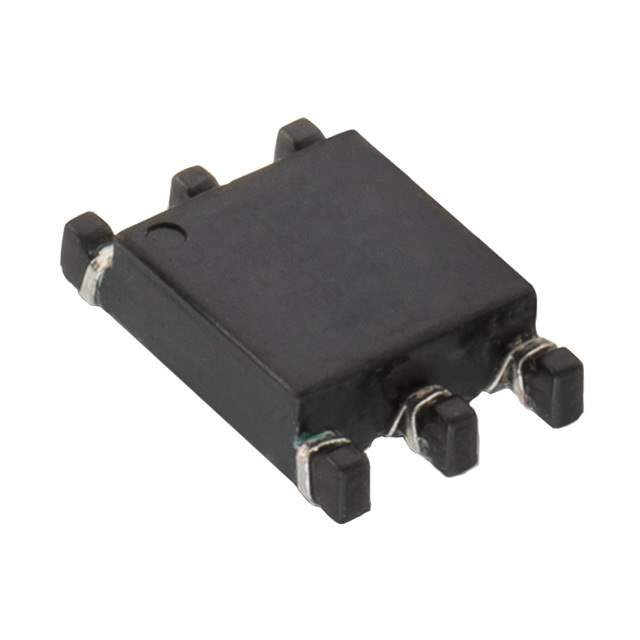

744252101 Real Image
Same model may have multiple batches, images only for reference.

744252101

Part No 744252101
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 100UH 500MA 2LN SMD
Datasheet
744252101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL3
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 100 µH @ 100 kHz
Current Rating (Max) 500mA
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Height (Max) 0.098" (2.50mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857310-744252101
Ultra Librarian 3D Model Ultra Librarian 744252101 CAD Model

Description

The WE-SL3 series is a common mode choke designed for signal line filtering in electronic components. Wurth Electronics Inc manufactures it.

  • Voltage Rating: 80V DC
  • Current Rating: 500mA
  • Height: 0.098" (2.50mm)
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
  • Package: 1,500 pcs
  • Applications: Filters, common mode chokes, and signal line filtering
