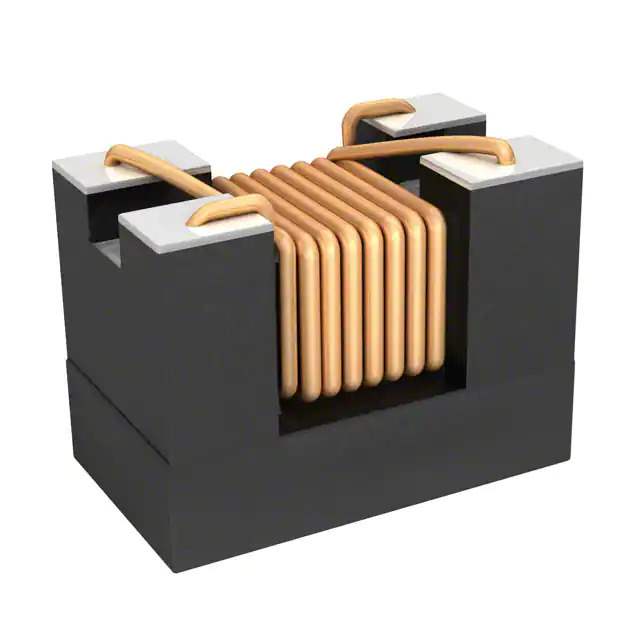

744231371 Real Image 744231371 Real Image
Same model may have multiple batches, images only for reference.
744231371 Real Image 744231371 Real Image
744231371 Real Image 744231371 Real Image
Same model may have multiple batches, images only for reference.

744231371

Part No 744231371
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 280MA 2LN 370OHM SMD AECQ200
Datasheet
744231371 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-CNSW
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 370 Ohms @ 100 MHz
Current Rating (Max) 280mA
DC Resistance (DCR) (Max) 450mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.055" (1.40mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 743951-744231371
Ultra Librarian 3D Model Ultra Librarian 744231371 CAD Model

Description

The WE-CNSW series from Wurth Electronics Inc is a common mode choke designed for use in signal line filtering applications.

  • Size: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Maximum Current Rating: 280mA
  • Impedance: 370 Ohms @ 100 MHz
  • Package: Surface Mount
  • Packaging: Tape & reel
  • Maximum Seated Height: 0.055" (1.40mm)
  • DCR: 450mOhm max
  • Temperature Range: -40°C to 125°C
  • Ideal For: Automotive electronics, communication systems, and other applications where signal line filtering is required.
