Same model may have multiple batches, images only for reference.

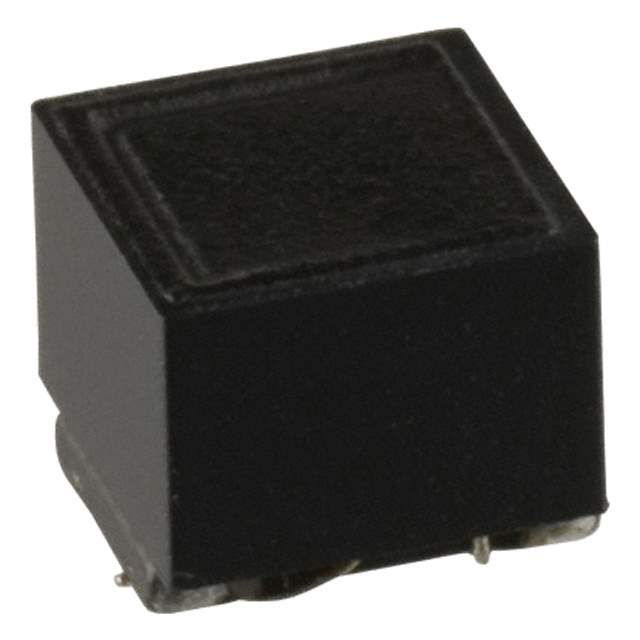

DLW5BSM102SQ2L Real Image
Same model may have multiple batches, images only for reference.

DLW5BSM102SQ2L

Part No DLW5BSM102SQ2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description Common Mode Chokes Dual 1kOhm 100MHz 1.5A 0.06Ohm DCR SMD T/R / CMC 1.5A 2LN 1 KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 1 kOhm @ 100MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 60 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.177" (4.50mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 1033485-DLW5BSM102SQ2L
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name DLW5BS
Introduction Date March 02, 2006
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian DLW5BSM102SQ2L CAD Model

Description

The Murata Electronics North America 1033485-DLW5BSM102SQ2L is a power and signal line filter.

  • Voltage Rating: 50V
  • Current Rating: 1.5A
  • Horizontal Dimension: 4 PC Pads
  • Height: 0.177" (4.50mm)
  • Impedance: 1 kOhm @ 100MHz
  • Maximum DC Resistance (DCR): 60 mOhm
  • Compliance: RoHS
  • Popularity: High
