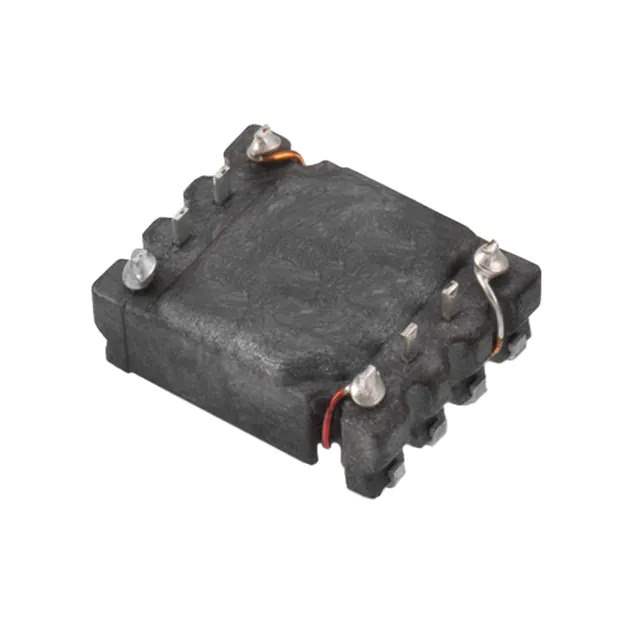

744204 Real Image
Same model may have multiple batches, images only for reference.

744204

Part No 744204
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 250UH 600MA 4LN SMD
Datasheet
744204 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 4
Inductance @ Frequency 250 µH @ 100 kHz
Current Rating (Max) 600mA
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Height (Max) 0.238" (6.05mm)
Package / Case Horizontal, 8 Gull Wing
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547215-744204
Ultra Librarian 3D Model Ultra Librarian 744204 CAD Model

Description

The WE-SL series by Wurth Electronics Inc is a common mode choke filter designed for signal line applications.

  • Package: Tape & Reel
  • Voltage Rating: 80V DC
  • Height: 0.238" (6.05mm)
  • Number of Lines: 4
  • Inductance: 250 μH @ 100 kHz
  • Maximum Current Rating: 600mA
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -40°C to 125°C
