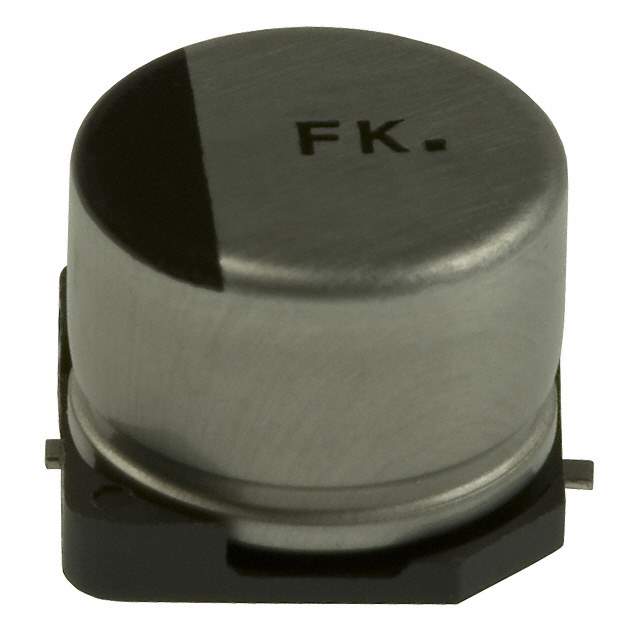

EEEFK0J471P Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Capacitance 470 µF
Case / Package Radial
Contact Plating Tin
Diameter 8 mm
ESR (Equivalent Series Resistance) 160 mΩ
Height 10.2 mm
Height - Seated (Max) 10.2108 mm
Impedance 160 mΩ
Lead Diameter 900 µm
Lead Free Lead Free
Lead Pitch 3.1 mm
Leakage Current 29.6 µA
Length 10.2 mm
Life (Hours) 2000 hours
Max Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount PCB, Surface Mount
Number of Pins 2
Packaging Cut Tape
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 600 mA
Ripple Current (AC) 600 mA
RoHS Compliant
Schedule B 8532220020
Termination SMD/SMT
Tolerance 20 %
Voltage 6.3 V
Voltage Rating 6.3 V
Voltage Rating (DC) 6.3 V
Width 10 mm
Win Source Part Number 1124442-EEEFK0J471P
Categories Aluminum Capacitors
Manufacturer Panasonic
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EEEFK0J471P CAD Model

Description

The EEEFK0J471P is an aluminum capacitor from Panasonic that comes in a radial package.

  • Capacitance: 470 µF
  • Voltage Rating: 6.3 V
  • Tolerance: 20%
  • Impedance: 160 mΩ
  • Ripple Current: 600 mA
  • Leakage Current: 29.6 µA
  • Diameter: 8 mm
  • Height: 10.2 mm
  • Mounting Technology: PCB, surface mount
  • Temperature Range: -55 °C to 105 °C
