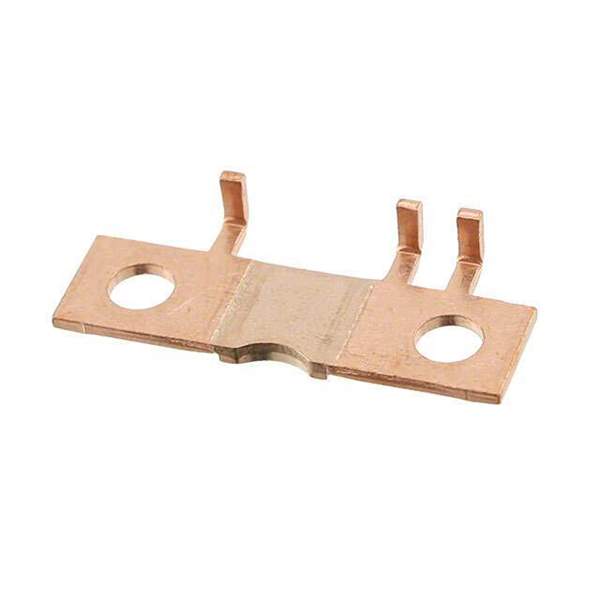

WSMS2908L2500JK Vishay Dale
Same model may have multiple batches, images only for reference.

WSMS2908L2500JK

Part No WSMS2908L2500JK
Manufacturer Vishay
Catalog Specialized Resistors
Description RES SHUNT 0.00025 OHM 5% 3W
Datasheet
WSMS2908L2500JK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308220-WSMS2908L2500JK
Manufacturer Vishay Dale
Category Resistors>Specialized Resistors
Packaging  Bulk
Part Status Active
Type Shunt, Meter
Applications Power Meters
Composition Metal Element
Resistance (Ohms) 250 µOhms
Power (Watts) 3W
Mounting Type Shunt Fixture, 20mm Pitch
Ultra Librarian 3D Model Ultra Librarian WSMS2908L2500JK CAD Model

Description

FEATURES
• High power to resistor size ratio
• 5-terminal connection design
• Use for single or multi-phase energy meters
• Proprietary processing technique produces extremely low resistance values
• All welded construction
• Very low inductance (< 5 nH)
• Low thermal EMF (< 3 μV/°C)
• AEC-Q200 qualified
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
